Parts supplied - Axiom 2 Pro 9 / 12

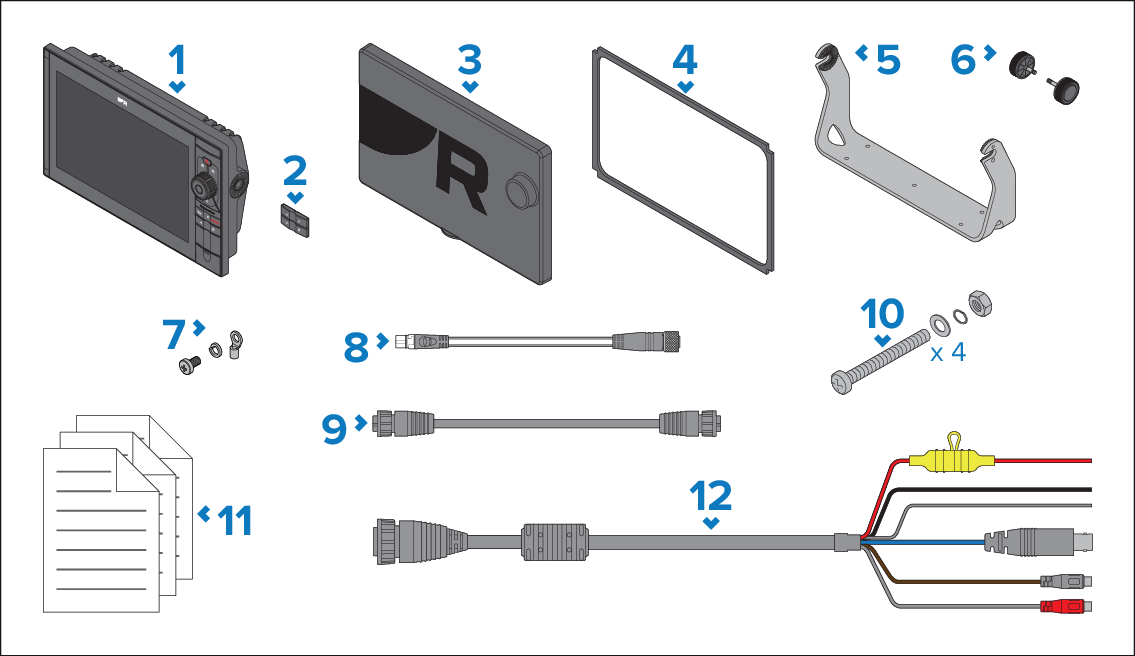

The following parts are supplied in the box.
Unpack your product carefully to prevent damage or loss of parts. Check the box contents against the list below. Retain the packaging and documentation for future reference.
Parts suppliedWhat’s in the boxBox contents
Description |
|
|---|---|
1 |
Axiom® 2 Pro display |
2 |
User-configurable lower keypad |
3 |
Suncover |
4 |
Mounting gasket |
5 |
*Trunnion mounting bracket |
6 |
Trunnion knobs |
7 |
M3 x 5 screw, M3 spring washer and M3 crimp terminal (for optional grounding connection) |
8 |
SeaTalk NG to DeviceNet adaptor cable, 1 m (3.3 ft) |
9 |
RayNet network cable, 2 m (6.6 ft) |
10 |
Mounting fixings x 4 (including M4 x 40 bolts, M4 plain washers, M4 nuts) |
11 |
Documentation |
12 |
Power/video/audio cable, 1.5 m (4.92 ft) |
*Fixings to secure the trunnion bracket to a mounting surface are not provided. 5 x self-tapping screws are required. The screws should be suitable for the mounting surface material and the 5.75 mm (0.23 in) diameter mounting holes in the trunnion bracket.
