GNSS (GPS) antenna connection
For installations where the display does not have a clear view of the sky, or where a position fix is not possible or unreliable due to structure or other obstacles, a passive antenna (such as the GA200, part number A80589) can be connected to improve the performance of the display’s internal GNSS (GPS) receiver. The antenna is connected to the GPS Antenna connector located on the rear of the display.
ConnectionsGPS antennaGPS antenna connectionGNSS antenna connection

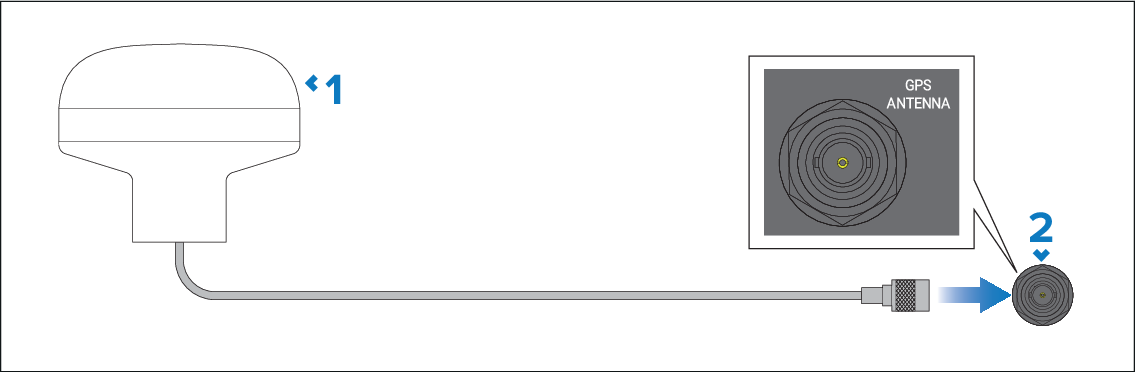

Passive GNSS (GPS) antenna:
GA200 (part number: A80589); or:
GA150 (part number: A80288)
GPS Antenna connector.
For installation details, refer to the documentation provided with your GNSS (GPS) antenna.
