CPT-S transducer connection

CPT-S transducers can be connected to the display’s Transducer connection using the RV 25-pin to DV 9-pin adaptor cable (part number: A80490).

Connections Transducer CPT-S transducers

Note

You CANNOT connect RealVision™ Max 3D, RealVision™ 3D, DownVision™ or SideVision™ transducers to an S variant display.

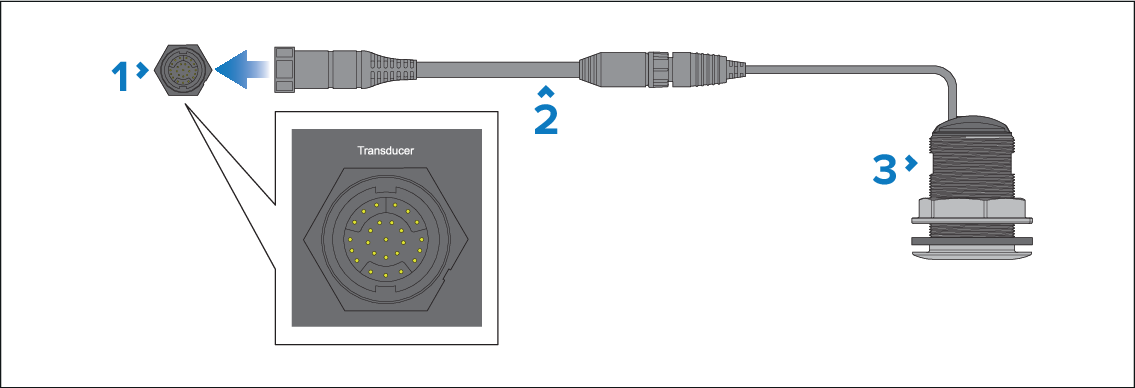

Figure 1. Example CPT—S transducer connection

  1. Display’s Transducer 25-pin connector.

  2. RV 25-pin to DV 9-pin adaptor cable (part number: A80490).

  3. CPT-S transducer.

For a list of compatible CPT-S transducers refer to: CPT-S conical beam transducers
