Analog audio (RCA) output connections

The display can output audio from installed third-party apps, such as Netflix® or Spotify®, by connecting the RCA Analog Audio connectors on the display’s Power/audio/video cable to an analog audio input on an audio amplifier or entertainment system.

Connections AudioAudio Connections (RCA)

Note

Analog audio output from the display requires an external audio amplifier or entertainment system with an analog audio input.

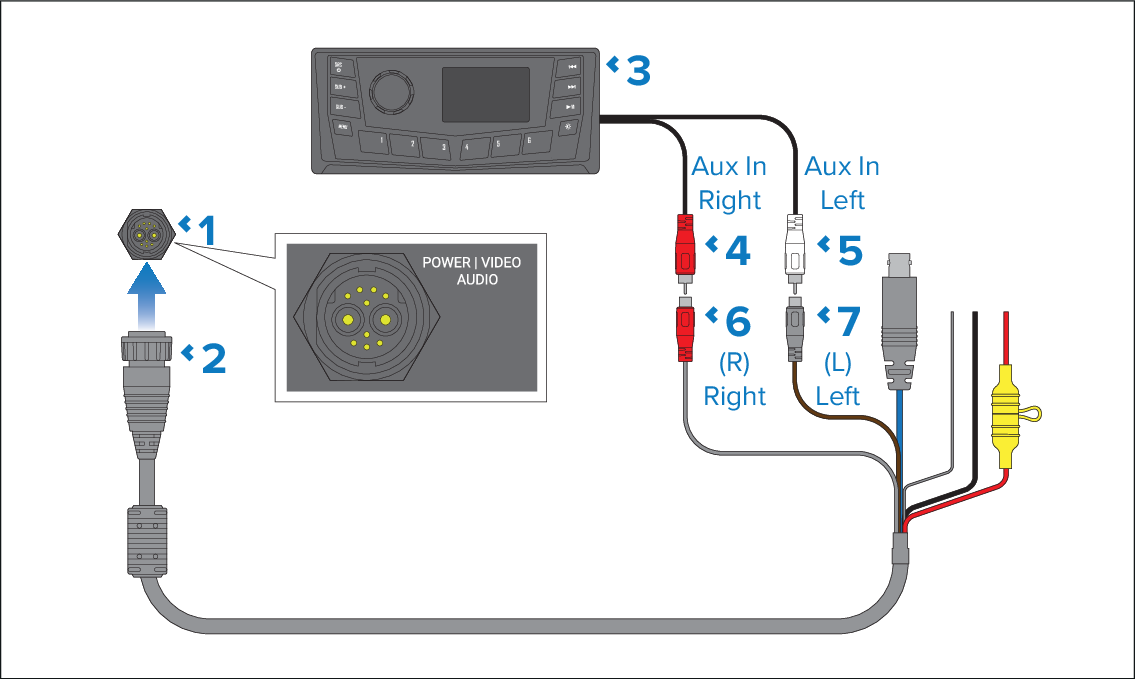

  1. Display’s PWR/Video/Audio connector.

  2. Display’s Power/video/audio cable, 1.5 m (4.9 ft).

  3. Entertainment system with built-in amplifier.

  4. Entertainment system’s Right auxiliary analog audio input (RCA; usually red male connector).

  5. Entertainment system’s Left auxiliary analog audio input (RCA; usually white or black male connector).

  6. Display’s Right channel analog audio output (red female RCA connector).

  7. Display’s Left channel analog audio output (black female RCA connector).

Note

Optionally, digital audio may be output from the display wirelessly, by connecting a Bluetooth speaker. For instructions on pairing a Bluetooth speaker, refer to the operations instructions for your display (Document number: 81406).

A Bluetooth speaker will take priority over RCA analog audio (i.e.: if both are connected, audio will only be output from the Bluetooth speaker. In this scenario, to output from RCA audio instead, switch the Bluetooth speaker off).
