RealVision® 3D overview

Explanation of the RealVision® sonar technology and its key benefits.

CHIRPRealVision 3D overviewRealVision® 3D transducers combine DownVision®, SideVision®, high frequency CHIRP Sonar, and RealVision® 3D to deliver life-like 3D sonar imagery.

RealVision® 3D provides a true, easy-to-understand view of bottom topography, debris, and fish.

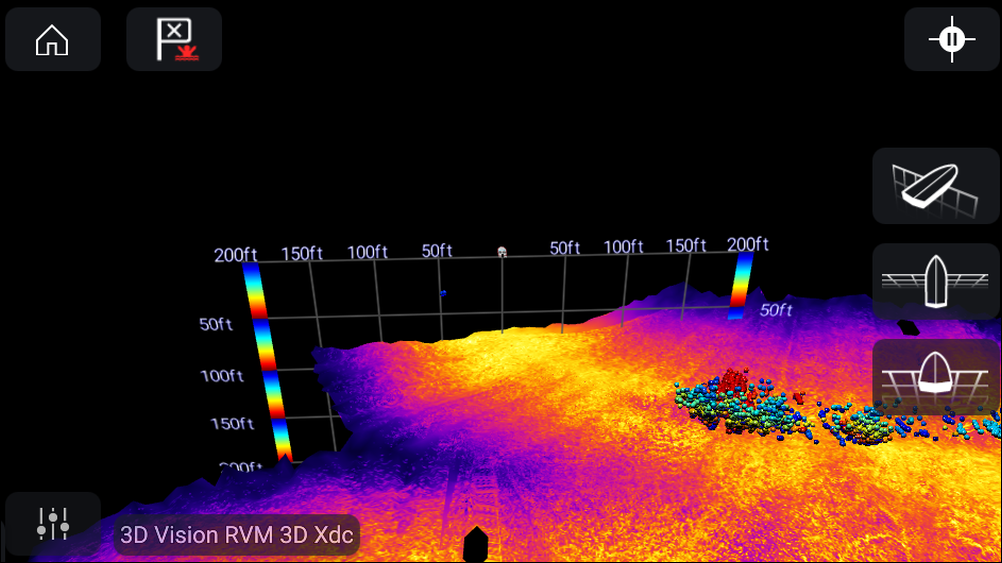

RealVision® 3D screen example

Note

The “Depth” figure shown in the illustration above assumes that you have a device in your system that provides depth data. Please be aware that not all transducers and / or sonar modules support depth sensing. For more information, refer to the latest specifications and documentation available for your particular products on the Raymarine website: www.raymarine.com
