Product overview

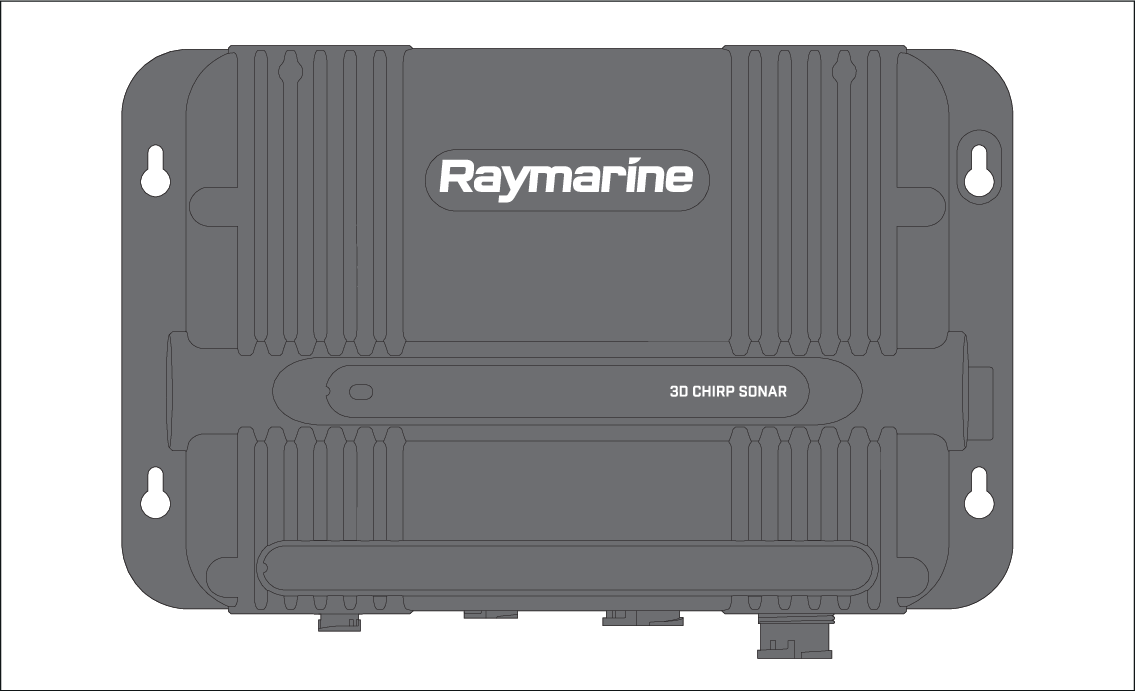

The RVM1600 is a high-power sonar module supporting multiple sonar channels and transducers — RealVision® 3D / RealVision® Max 3D, DownVision®, and SideVision®. It also supports traditional and CHIRP transducers. In conjunction with a compatible Raymarine MFD / chartplotter and transducer, the RVM1600 produces realistic 3D representations of the objects below your vessel to help you identify underwater structures and locate fish.

Product overview

The RVM1600 sonar module has the following features:

  • RealVision® Max 3D technology provides improved ping rates and tighter beamwidths, resulting in sharper sonar images, detailed wrecks, and distinct fish targets.

  • RealVision® Max 3D technology also provides higher contrast color palettes for accentuating targets, allowing fish targets to stand out from the water column noise.

  • The RVM1600 supports a new 600 W High CHIRP frequency, providing extended traditional sonar range, and stronger target returns.

  • Allows Raymarine MFDs / chartplotters which do not have a built-in RealVision Max 3D sonar module to display RealVision Max 3D data.

  • Enables compatible Raymarine MFDs / chartplotters to display sonar data from RealVision® 3D / RealVision® Max 3D transducers, as well as up to 1 kW CHIRP and traditional transducers.

  • 12 V or 24 V dc operation.

  • Supports transducers with temperature and speed sensors.

  • Ignition protection to EN ISO 8846:2017 standard.

  • Waterproof to IPx6 & IPx7.

  • Robust and waterproof high-speed network connection, via a RayNet network cable.
