Mounting the unit

Having chosen a suitable location, install the unit as follows:
Note

It is recommended that the unit is mounted vertically.

InstallationMountingMounting

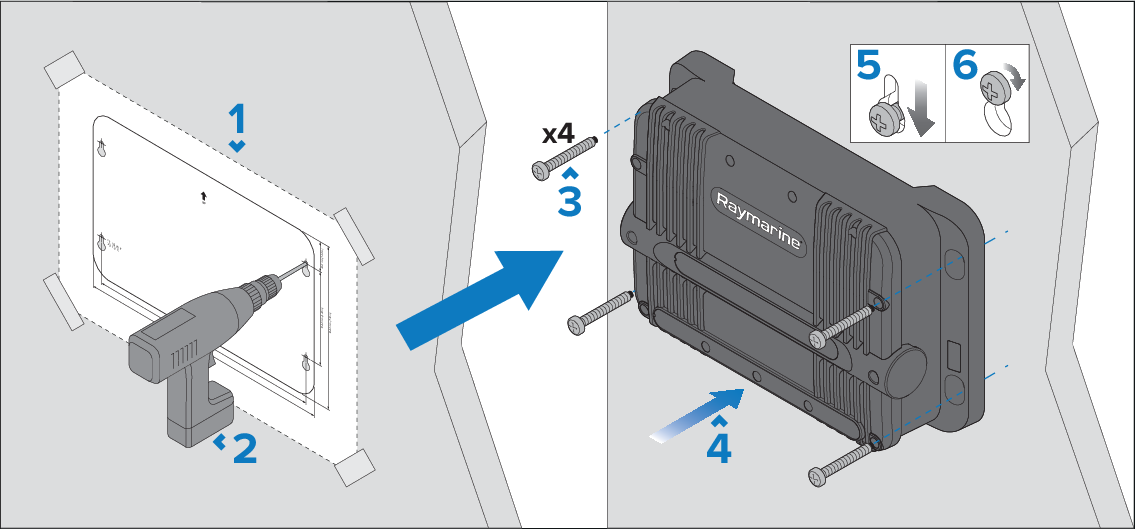

  1. Secure the mounting template in the required location using adhesive tape.
  2. Drill 4 holes at the marked location on the template, and then remove the mounting template.
  3. Screw the 4 fixing screws approximately half way into the holes.
  4. Align the unit’s mounting lugs with the screws, and then carefully place the unit onto the fixing screws.
  5. Push the unit down to engage the key slots in the unit.
  6. Fully tighten the 4 fixing screws.
Note

Drill bit, tap size and tightening torque are dependent on the thickness and type of material the unit is to be mounted on.
