Connections overview

Explanation of the various physical connections available on the unit.

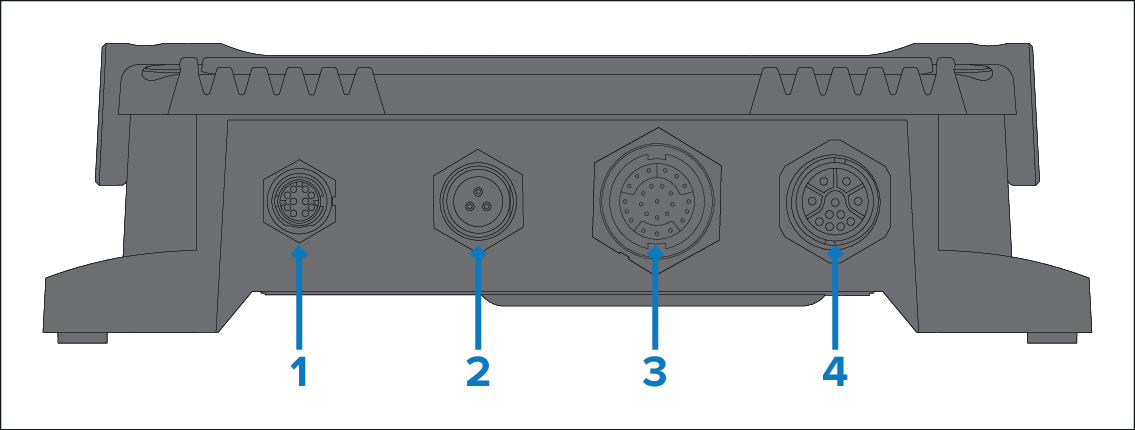

ConnectionsOverviewRear panel

Note

A dust cap is provided for each transducer connector. Ensure that you fit the dust cap over any unused transducer connector.

  1. RayNet network connection.

  2. 12 / 24 V dc power connection.

  3. 25-pin RealVision® 3D / RealVision® Max 3D transducer connection (supports DownVision® and CPT-S-Series CHIRP conical beam transducers via the use of adapter cables).

  4. 11-pin CHIRP / Traditional transducer connection (up to 1 kW).

Note

For further network, power or transducer connection information, refer to the following sections:
