iTC-5 transducer connections

Analog transducer data can be transmitted to the display via an iTC-5.

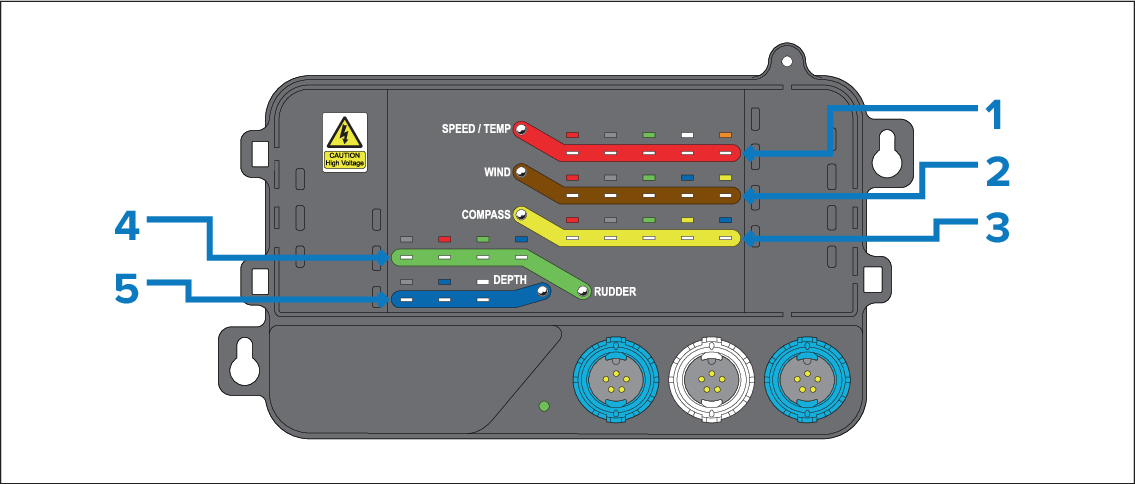

  1. Speed & Temperature transducer connections

  2. Wind transducer connections

  3. Compass connections

  4. Rudder reference transducer connections

  5. Depth transducer connections

iTC-5 connectionFor details on connecting an iTC-5 to the SeaTalk NG backbone and connecting transducers to the iTC-5, refer to the documentation provided with the iTC-5:

iTC-5 documentation link
www.bit.ly/itc-5-docs
