SeaTalk NG power cables

The following SeaTalk NG power cables can be used to connect the backbone to your chosen 12 V dc power supply:

Direct connection cables

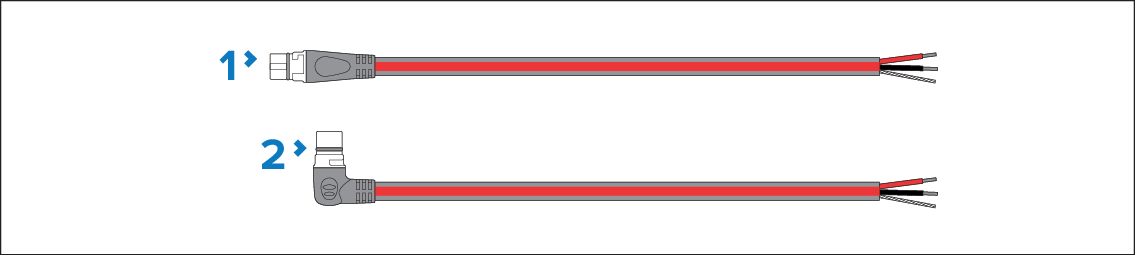

SeaTalk NG Power cables

  1. Standard (straight) SeaTalk NG power cable, 2 m (6.6 ft) (part number: A06049).

  2. Elbow (right-angled) SeaTalk NG power cable, 2 m (6.6 ft) (part number: A06070).

Wiring

  • + Red (positive) wire — connects to the battery or distribution panel positive terminal. A waterproof fuse holder with 5 A inline fuse (not supplied) must be fitted to this red wire.

  • – Black (negative) wire — connects to battery or distribution panel negative terminal.

  • Drain wire — connects to the vessel’s RF common ground point (if available), or the battery’s negative (-) terminal.

Autopilot Control Unit connection cable

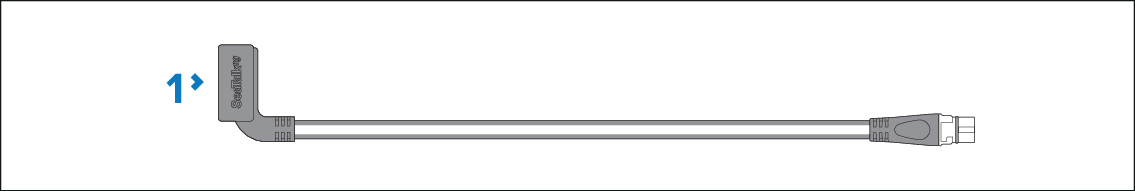

  1. ACU-Series/SPX-Series autopilot to SeaTalk NG spur cable, 0.3 m (1.0 ft) (part number R12112). Connects the course computer to the SeaTalk NG backbone. This connection can also be used to provide 12 V dc power to the SeaTalk NG backbone.
