RSW-Series transducer connection

The i70 instrument display can show wind data transmitted from the RSW-Series transducers.

System exampleRSW transducerThe display must be on the same NMEA 2000/SeaTalk NG as the RSW-Series transducer.

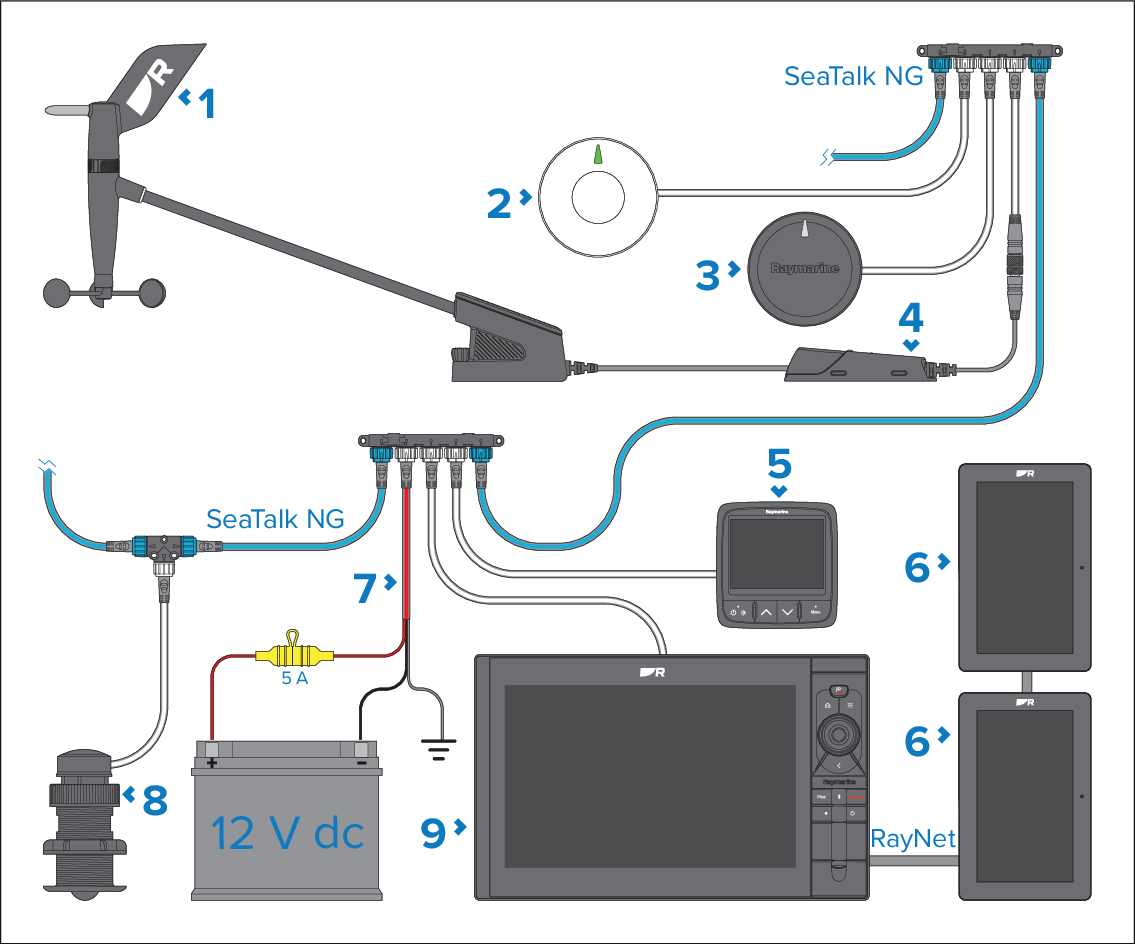

Figure 1. System example

  1. RSW-Series transducer.

  2. GNSS (GPS) receiver (e.g.: RS150).

  3. Heading sensor (e.g.: EV-1).

  4. NMEA 2000 gateway (supplied with the RSW-Series transducer).

  5. i70 instrument display, running software version v3.23 or later.

  6. Alpha-Series displays.

  7. SeaTalk NG 12 V dc power connection.

  8. Speed transducer (e.g.: DST800).

  9. MFD/Charplotter (e.g.: Axiom 2 Pro), running LightHouse 4 v4.5.84 or later.

Note

  • In order for your display to calculate and display True wind values, Speed Through Water (STW) (received from a speed transducer) and Heading (received from a heading sensor) data must be available.

  • In order for your display to calculate and display Ground wind values a GNSS receiver is required.

For RSW-Series transducer installation and connection details refer to the documentation for your RSW-Series transducer.
