Smart transducers
Smart transducers can be connected directly to
the SeaTalk NG backbone without
the need for an iTC-5 or transducer pod.

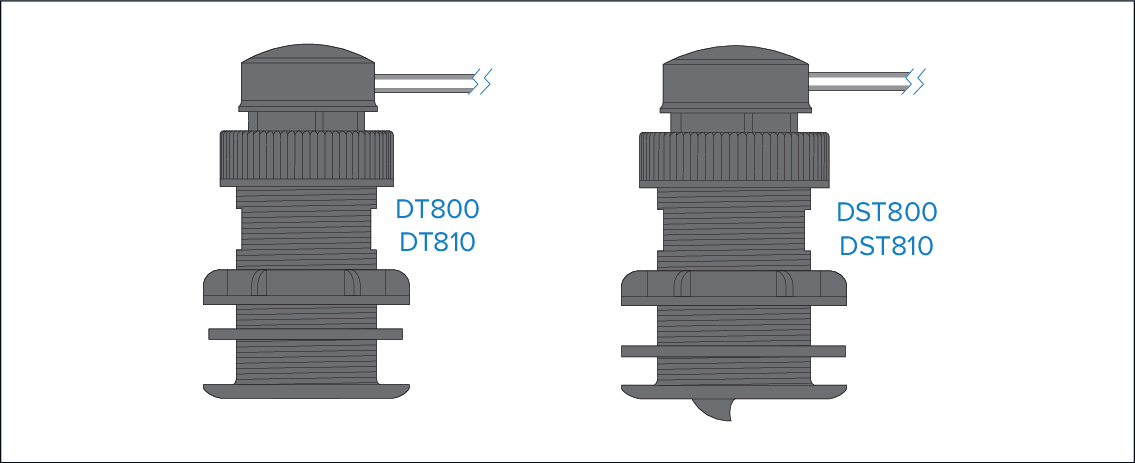

TransducersSmart transducersThe smart transducers listed below are compatible with the following displays:
i70s / i70.
Multifunction displays.
| Part number | Transducer description |
|---|---|
E70617 / E70667 |
DST810–0° Thru-Hull |
E70618 |
DT810–0° Thru-Hull |
E70619 |
DT810–12° Thru-Hull |
A22146 |
DST800 Bronze Thru-Hull |
A80375 |
DST800 Plastic Thru-Hull (replaces A22111) |
A22147 |
DT800–12° Bronze Thru-Hull |
A80374 |
DT800–12° Plastic Thru-Hull (replaces A22112) |
