SeaTalk NG connection

The product can be connected to a SeaTalk NG backbone using the supplied spur cable.

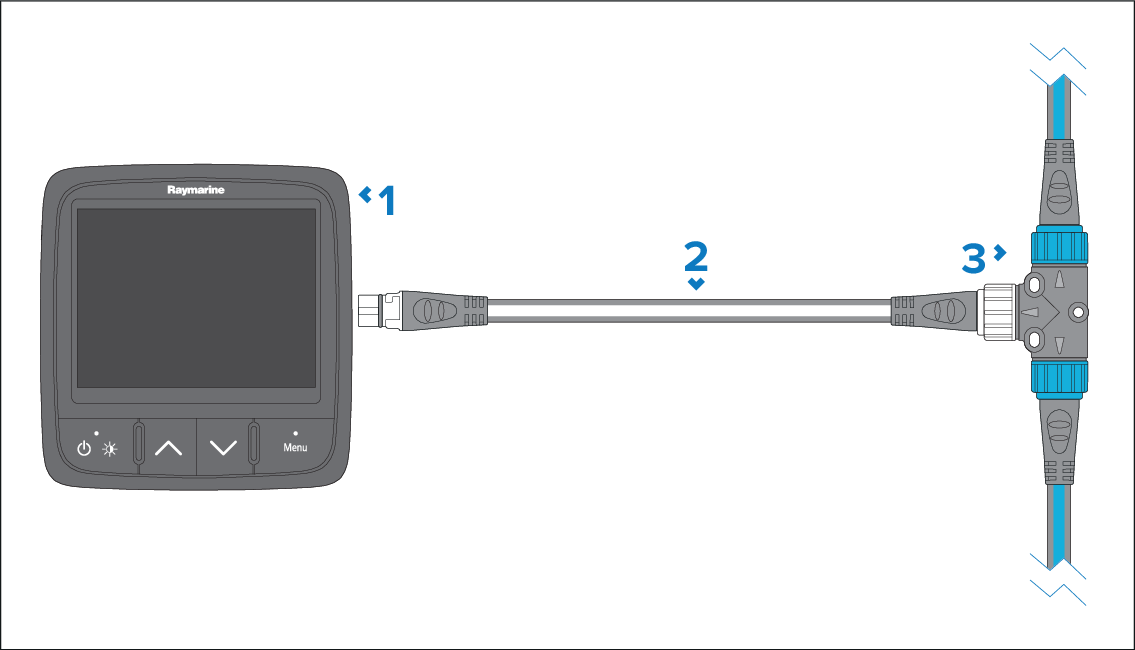

ConnectionsSeaTalk NG

1. i70 multifunction instrument display.

2. SeaTalk NG spur cable (400 mm (15.7 in) cable is supplied).

3. SeaTalk NG backbone.
