Connecting SeaTalk NG cables

ConnectionsSeaTalk NGSeaTalk NG

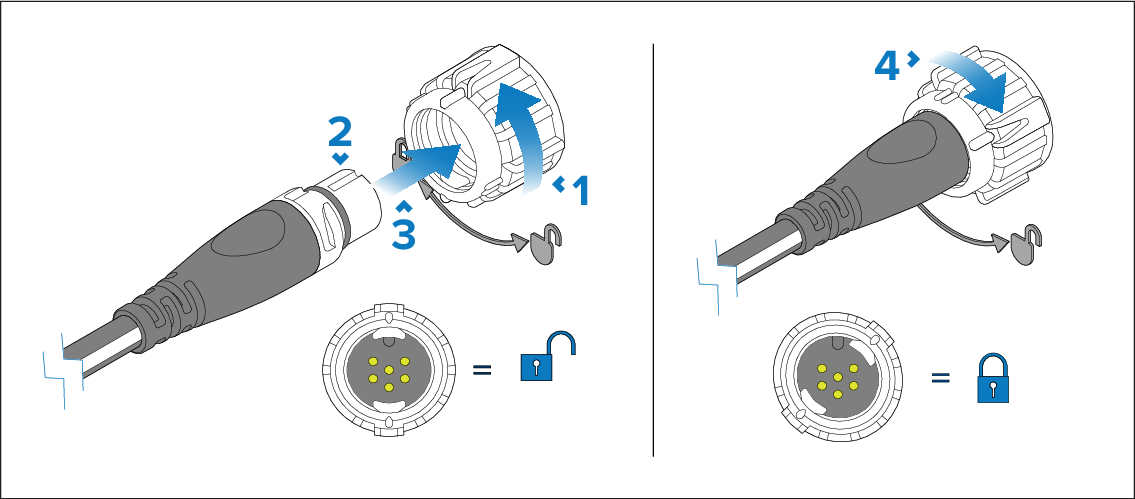

  1. Rotate your product’s SeaTalk NG connector locking collar counter clockwise, so that the connector is in the unlocked position.
  2. Ensure the cable’s connector is correctly oriented (groove pointing up).
  3. Fully insert the cable connector.
  4. Rotate the locking collar clockwise (2 clicks) until it is in the locked position.
