NMEA 2000 connection

The product can be connected to a NMEA 2000 backbone using a SeaTalk NG to DeviceNet adaptor cable.

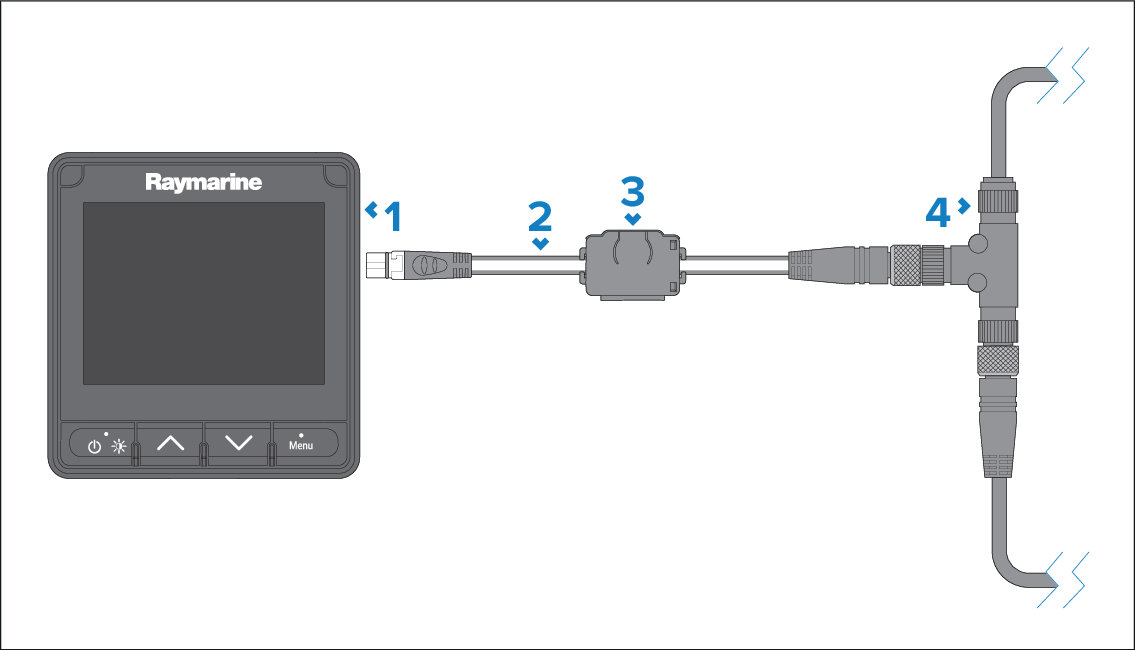

NMEA 2000 connection

  1. i70s multifunction instrument display.

  2. SeaTalk NG to DeviceNet adaptor cable (e.g.: part number A06075).

  3. Suppression ferrite (supplied).

  4. DeviceNet T piece connector.
