Cable ferrite installation

Your product is supplied with a suppression ferrite clamp which must be fitted according to the following instructions:
Important

To ensure EMC Compliance, the supplied ferrite MUST be fitted to the cable.

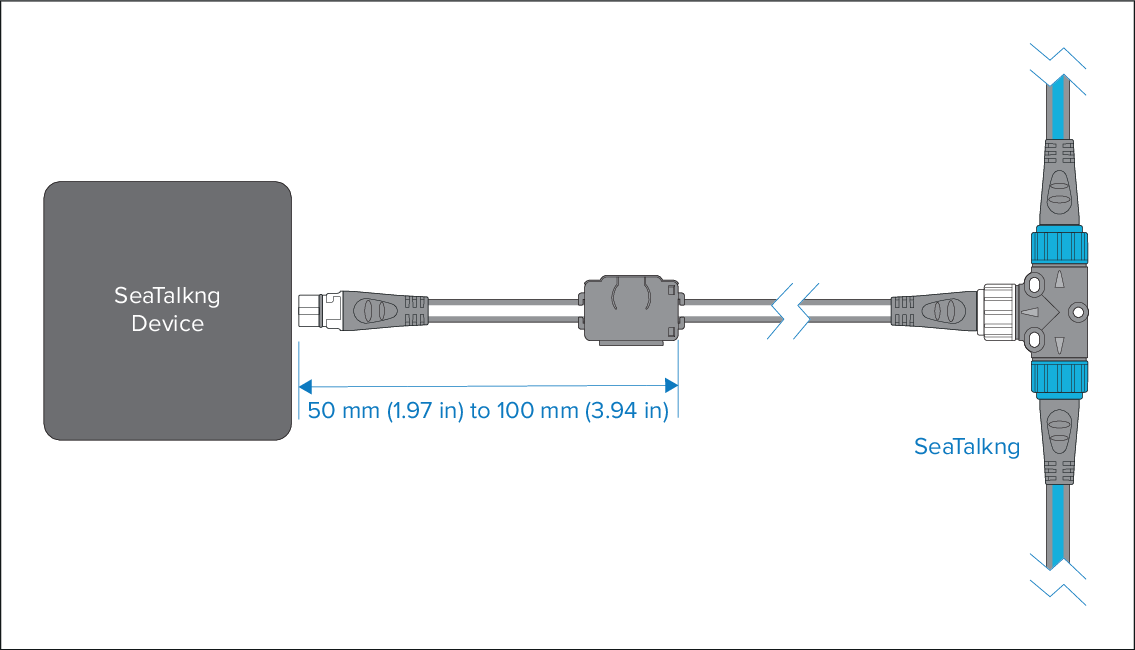

Suppression ferrite fitting
  1. The ferrite must be fitted to the end of the SeaTalk NG spur cable closest to the device.
  2. The ferrite must be fitted at the distance specified in the illustration above.
  3. Ensure a tight and secure fit so that the ferrite will not move up or down the cable.
