Tools required (surface mount installations)

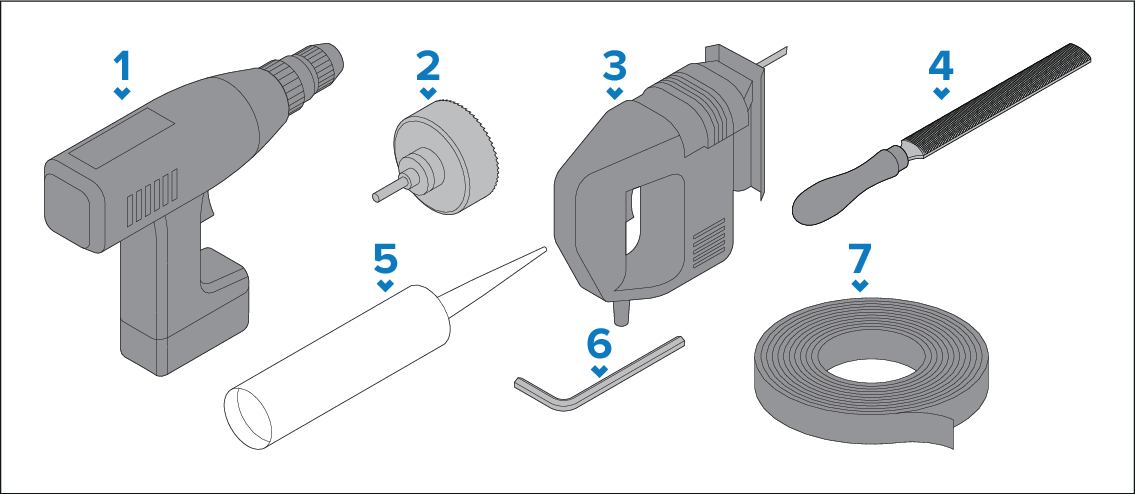

The following tools are recommended for surface mount installations:

InstallationSurface mountingTools requiredMountingSurface mountingTools requiredTools required Surface mounting

  1. Power drill.

  2. Hole cutter (appropriate size for corner diameters of the Cut out line identified on the supplied mounting template):

    • 20.00 mm (0.79 in) — 7” and 12” displays.

    • 24.00 mm (0.94 in) — 9” displays.

  3. Jigsaw.

  4. Half round file (or sandpaper).

  5. Marine grade sealant.

  6. (1) 4 mm Hex wrench (Allen key).

  7. Masking/self adhesive tape.

Note

(1) This item is only required when mounting an Axiom+ 7 display.
