Product overview

Axiom+ is a range of touchscreen glass bridge-style multifunction displays / chartplotters.

Axiom+ features include:

• Full range of navigation, sonar, radar, data, entertainment and other apps available, via the embedded LightHouse operating system.

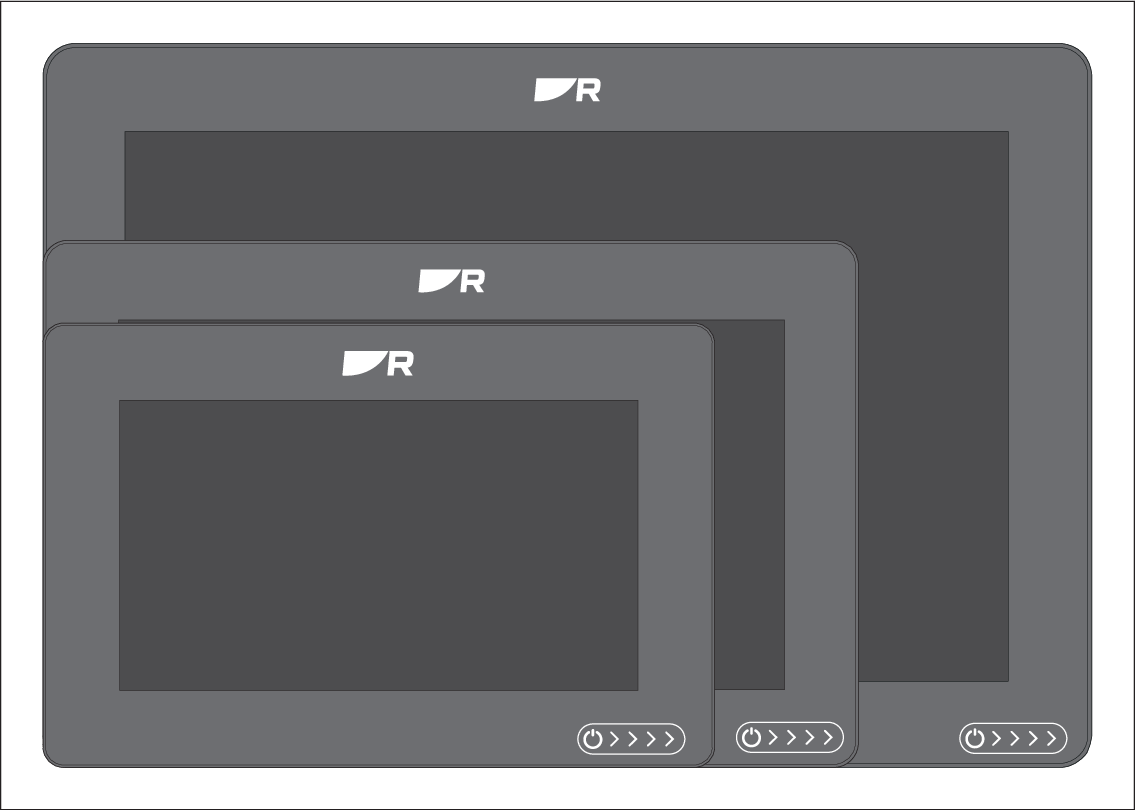

• Available in 7, 9 and 12 inch screen sizes.

• Quad-core (4-core) processor.

• 16 Gbyte internal solid state storage (14 Gbyte usable for user data).

• Multi-point touchscreen display, which supports the following screen resolutions:

  • Axiom+ 7: 1024 x 600 (WSVGA)

  • Axiom+ 9: 1280 x 720 (HD)

  • Axiom+ 12: 1280 x 800 (WXGA)

• Wide viewing angles.

• Hydrotough nano-coated, impact-resistant glass screen, which repels water, oil, and smudges for better viewing and accurate touch controls.

• RV 3D display variants include an internal RealVision 3D sonar module and a 600W CHIRP sonar module, which can be connected directly to compatible transducers via the 25-pin transducer connector on the rear of the display.

• RayNet (Ethernet) connection, which supports 10/100 Mbits/s data transfer speeds.

• NMEA 2000 DeviceNet connection (or SeaTalk NG via the supplied adaptor cable).

• NMEA 0183 connection available, via an optional NMEA 0183 to NMEA 2000 converter (part number: A80721).

• MicroSD card reader.

• Micro-USB connection, for use with an optional Remote Card Reader (RCR) accessory.

• Waterproof to IPx6 and IPx7 (suitable for above or below decks installation).
