Power connection
The power cable must be connected to a 12 V dc power supply, this can be achieved by connecting directly to a battery, or via the distribution panel. For 24 V vessels a suitable voltage converter is required. The product is protected against reverse polarity.

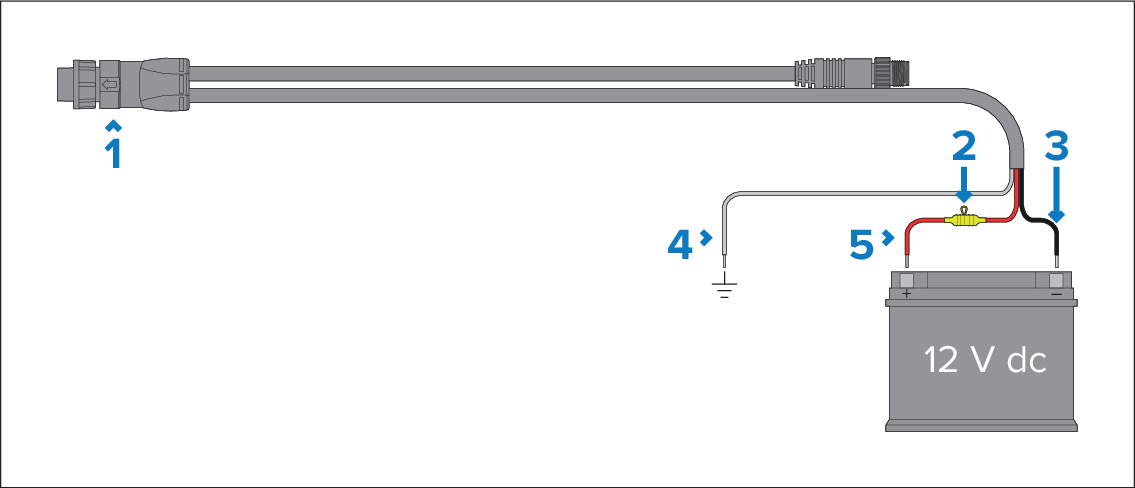

Power connectionConnectionPower
Description |
|
|---|---|
1 |
Power / NMEA 2000 cable — connects to the rear of the display. |
2 |
Waterproof fuse holder containing a suitably-rated inline fuse (not supplied), which must be fitted to the red positive wire — for fuse ratings, refer to: |
3 |
Black wire (negative) — connects to the power supply’s negative terminal. |
4 |
Gray wire (ground) — connects to the vessel’s RF ground point (if available), or the negative battery terminal. |
5 |
Red wire (positive) — connects to the power supply’s positive terminal. |
