Mounting options

Several mounting options are available.

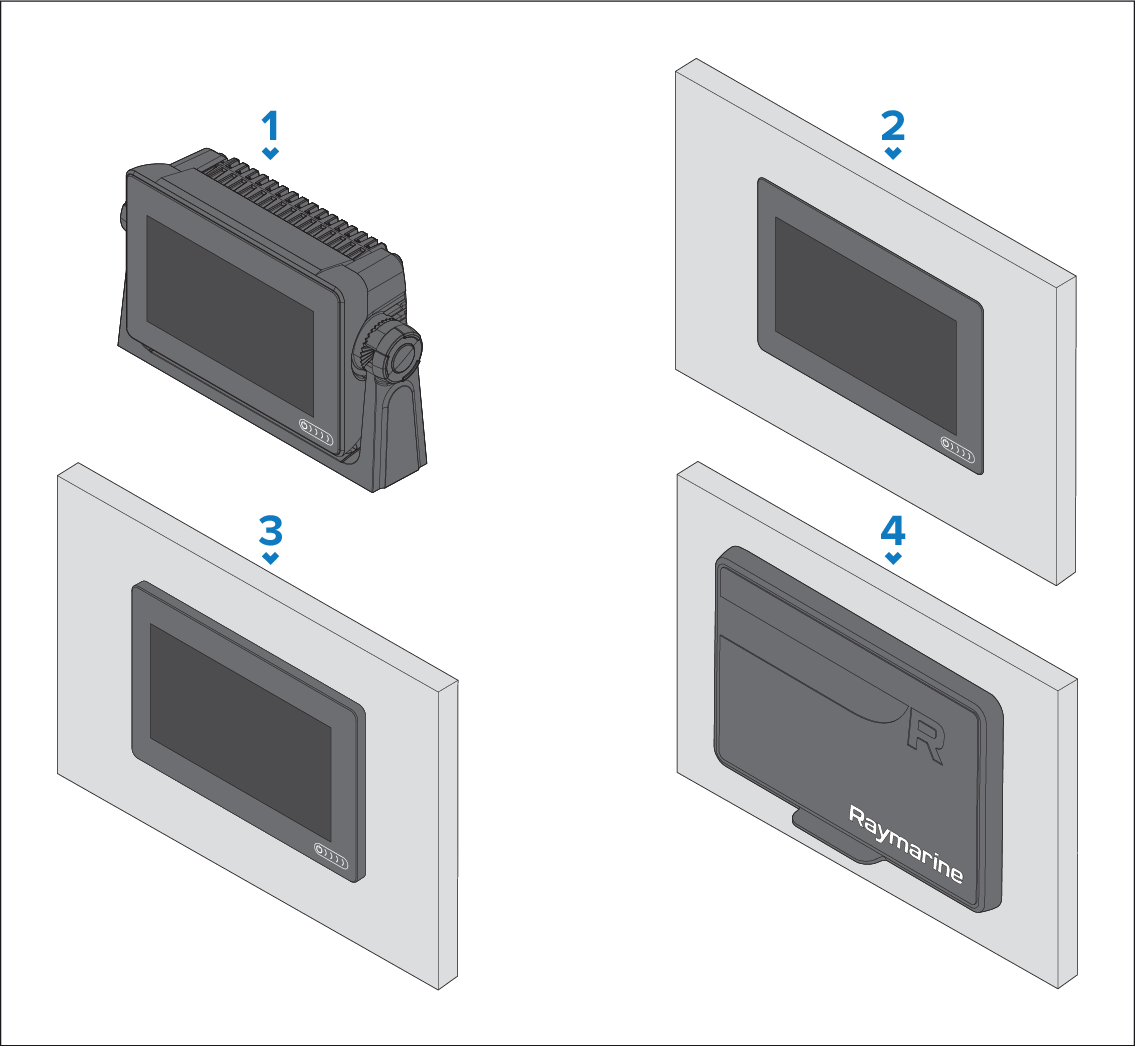

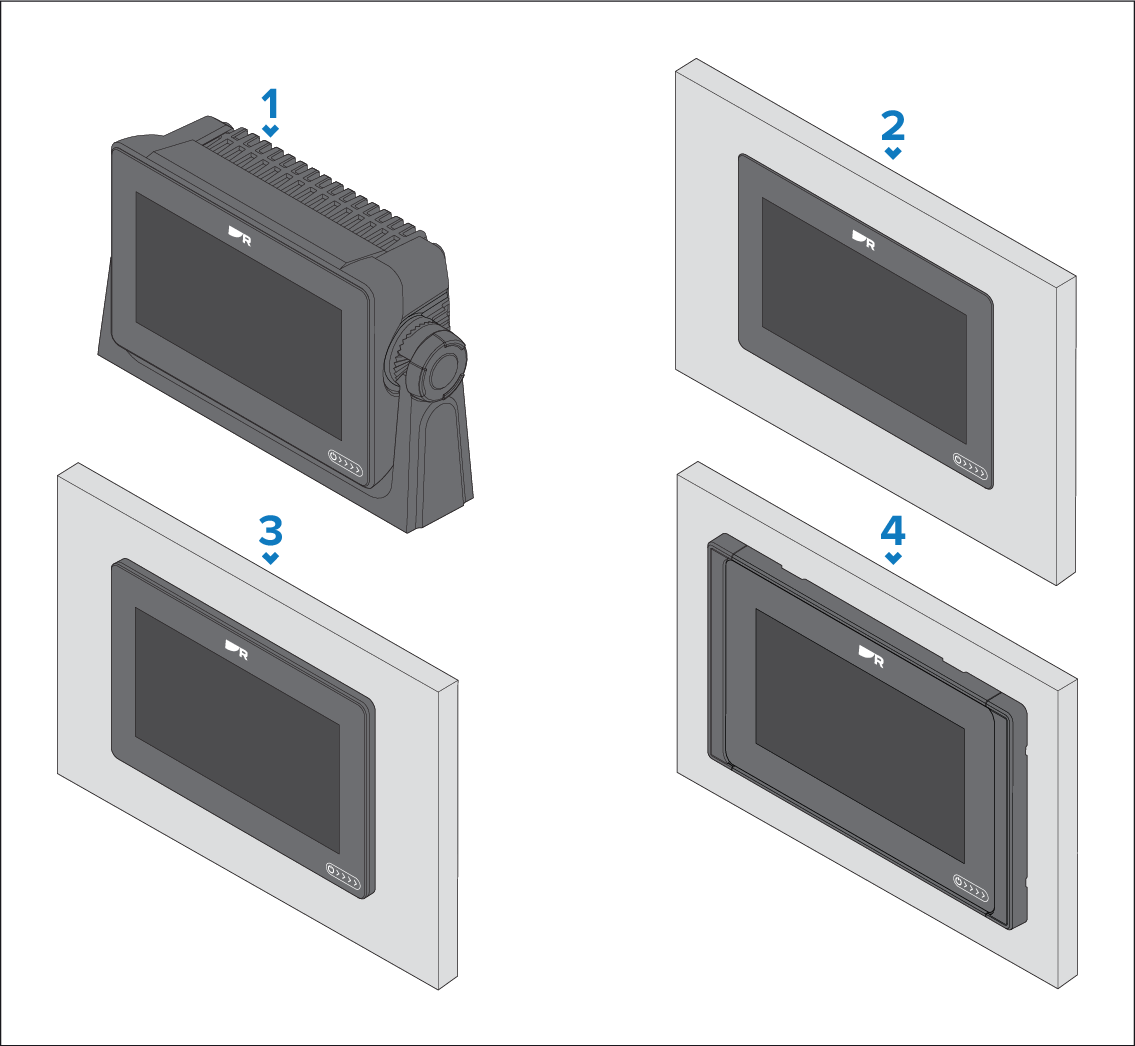

1. Mounting optionsInstallationMounting optionsMountingMounting optionsTrunnion mounting (used for mounting upright on a surface, or can be used for mounting overhead). For installation details, refer to: Trunnion bracket mounting

2. Flush mounting (when flush mounted the front glass of the display will sit flush with the mounting surface). For installation details, refer to: Flush mounting

3. Surface mounting (when surface mounted the display bezel will protrude from the mounting surface). For installation details, refer to: Surface mounting

4. Front mounting — via the ‘Front installation kit’ accessory: 7”; A80498, 9”; A80500, 12”; A80502 (used to surface mount the display when access to the rear of the mounting surface is restricted). For installation details, refer to the documentation supplied with each installation kit.

Legacy MFD adaptor plates are also available to enable you to easily swap out older MFDs for new Axiom+ MFDs. For a list of available adaptors, refer to: Legacy MFD adaptor plates
