Typical system examples

The Cyclone Open Array Radar scanner can be connected to a variety of equipment as part of your marine electronics system.

System examples

Note

The following illustrations show the various products that can be connected in a typical system. These systems are shown as an example only and may differ from your planned installation.

RaynetswitchVCM100Power converter, VCM100

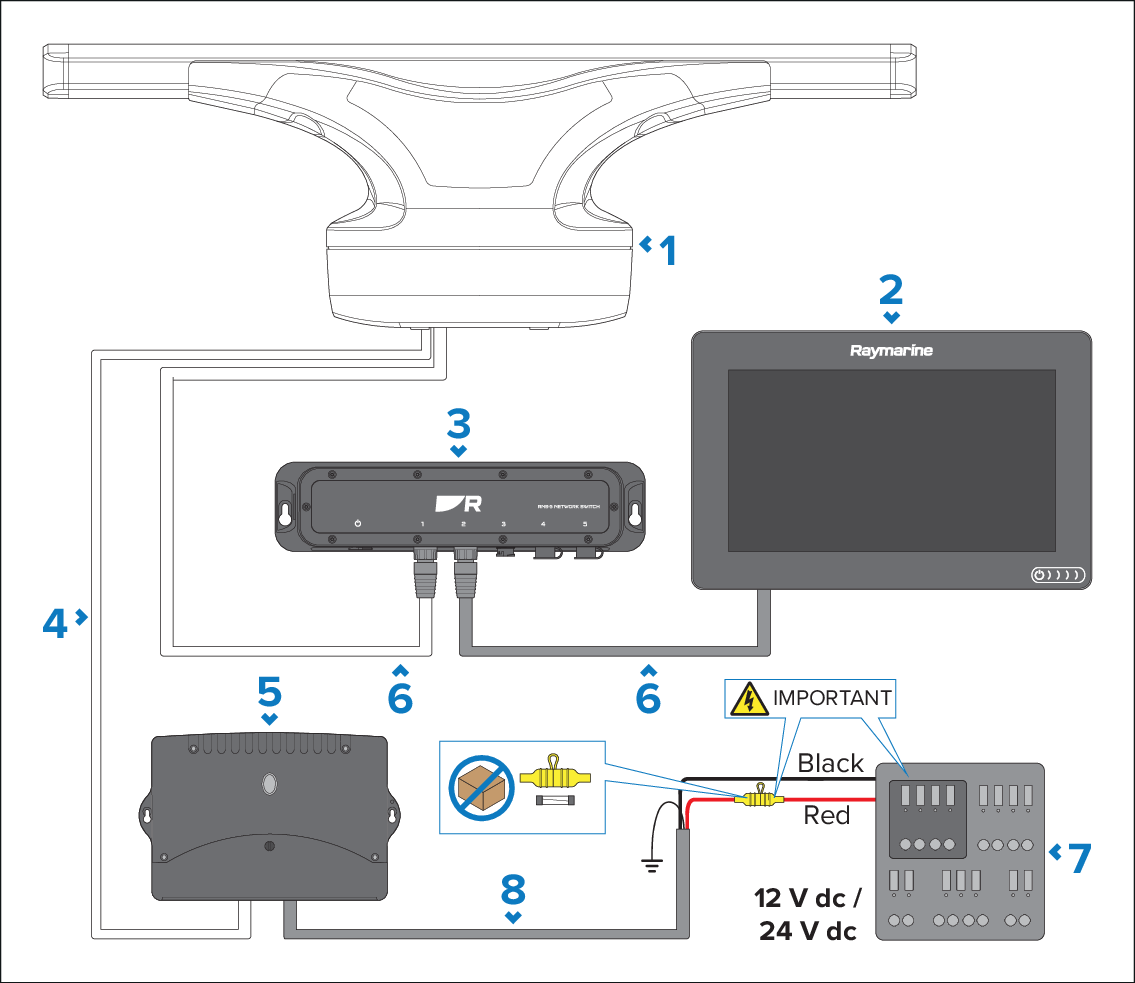

Radar connected using RayNet switch

Note

Some power connections are omitted from this illustration. The network switch and multifunction display each require a dedicated power connection.

Important

Fuses (not supplied) are required for circuit protection for the Cyclone Radar. For suitable fuse ratings, refer to: Circuit breaker and fuse ratings

  1. Cyclone Open Array Radar

  2. MFD

  3. RayNet network switch

  4. Cyclone power cable

  5. VCM100 power converter

  6. RayNet Radar data cable

  7. 12 V dc / 24 V dc Power supply (Distribution Panel or Battery)

  8. VCM100 power cable

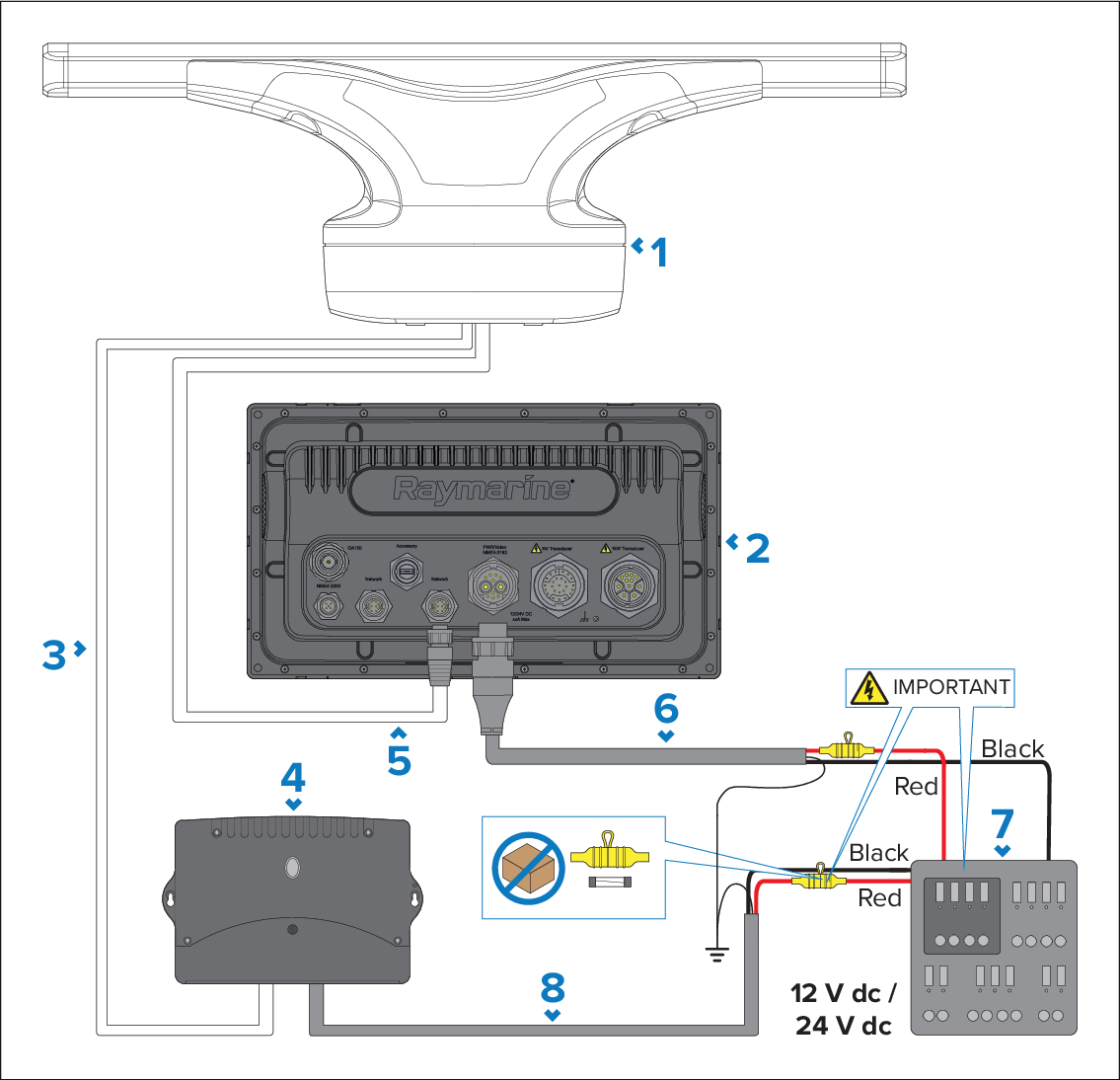

Radar connected directly to RayNet multifunction display

Important

Fuses (not supplied) are required for circuit protection for the Cyclone Radar. For suitable fuse ratings, refer to: Circuit breaker and fuse ratings

  1. Cyclone Open Array Radar

  2. MFD

  3. Cyclone power cable

  4. VCM100 power converter

  5. RayNet Radar data cable

  6. MFD power cable

  7. 12 V dc / 24 V dc Power supply (Distribution Panel or Battery)

  8. VCM100 power cable
