Product dimensions

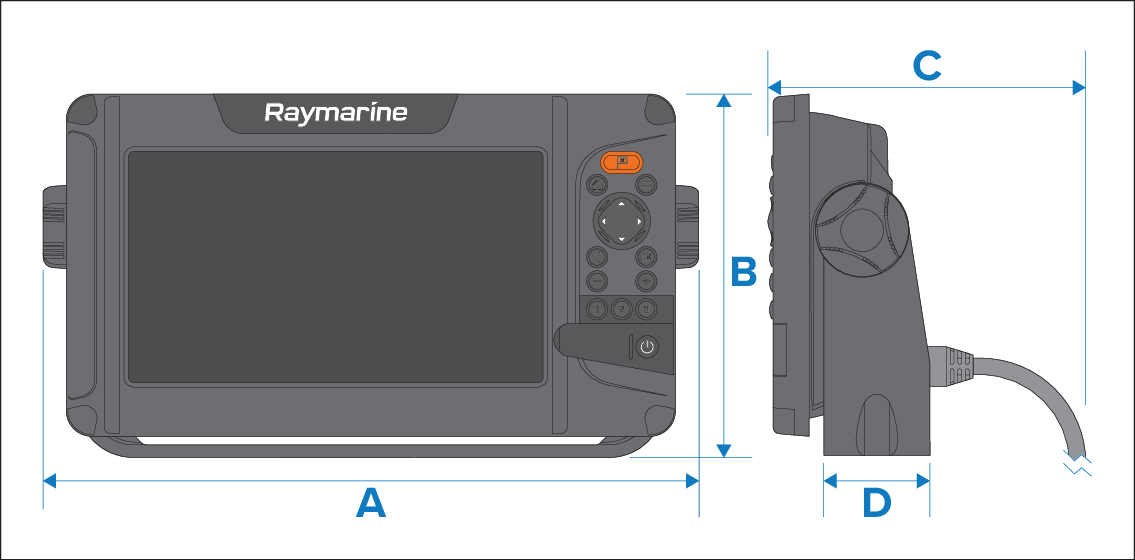

Figure 1. Trunnion mount dimensions
| DimensionsSpecificationDimensions | Element 7 |
Element 9 |
Element 12 |
|---|---|---|---|
A |
263.85 mm (10.39 in) |
308.40 mm (12.14 in) |
373.40 mm (14.70 in) |
B |
162.59 mm (6.40 in) |
171.00 mm (6.73 in) |
225.19 mm (8.87 in) |
C |
149.40 mm (5.88 in) |
149.40 mm (5.88 in) |
149.40 mm (5.88 in) |
D |
60.84 mm (2.40 in) |
50.11 mm (1.97 in) |
55.00 mm (2.17 in) |

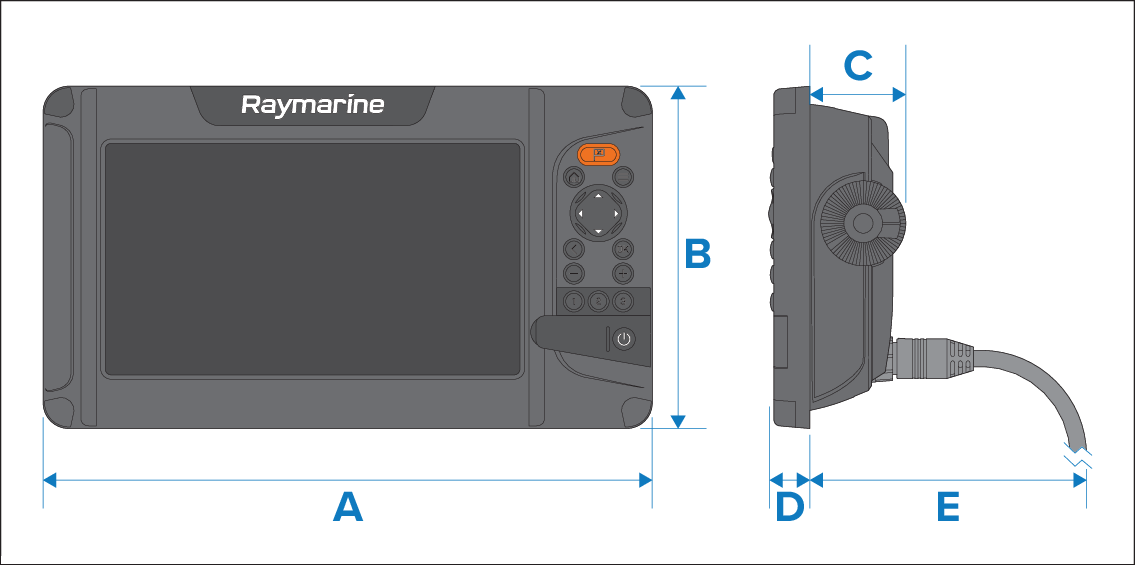

Figure 2. Surface mount dimensions
| DimensionsSpecificationDimensions | Element 7 |
Element 9 |
Element 12 |
|---|---|---|---|
A |
239.60 mm (9.43 in) |
286.50 mm (11.28 in) |
357.20 mm (14.06 in) |
B |
135.10 mm (5.32 in) |
161.00 mm (6.34 in) |
215.20 mm (8.47 in) |
C |
45.00 mm (1.77 in) |
45.00 mm (1.77 in) |
46.00 mm (1.81 in) |
D |
19.40 mm (0.76 in) |
19.40 mm (0.76 in) |
19.40 mm (0.76 in) |
E |
130.00 mm (5.12 in) |
130.00 mm (5.12 in) |
130.00 mm (5.12 in) |
