Product overview

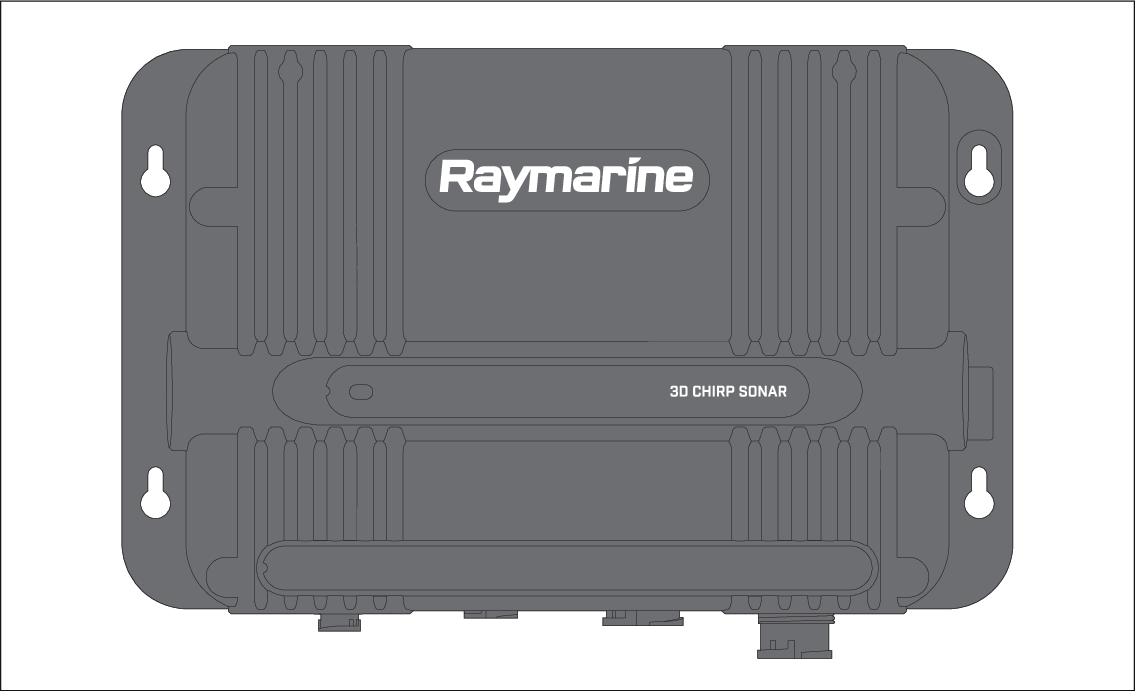

The RVX1000 is a high-power sonar module supporting multiple sonar channels and transducers — RealVision® 3D, DownVision®, and SideVision®. It also supports traditional and CHIRP transducers. In conjunction with a compatible Raymarine MFD / chartplotter and transducer, the RVX1000 produces realistic 3D representations of the objects below your vessel to help you identify underwater structures and locate fish.

Product overview

The RVX1000 sonar module has the following features:

  • RealVision® 3D technology provides detailed sonar images, easily-identifiable wrecks, and distinct fish targets.

  • RealVision® 3D technology provides high contrast color palettes for accentuating targets, making it easier to discern fish targets from the water column noise.

  • The RVX1000 supports 600 W CHIRP capability, for stronger target returns.

  • Allows Raymarine MFDs / chartplotters which do not have a built-in RealVision 3D sonar module to display RealVision 3D data.

  • Enables compatible Raymarine MFDs / chartplotters to display sonar data from RealVision® 3D transducers, as well as up to 1 kW CHIRP and traditional transducers.

  • 12 V or 24 V dc operation.

  • Supports transducers with temperature and speed sensors.

  • Ignition protection to EN ISO 8846:2017 standard.

  • Waterproof to IPx6 & IPx7.

  • Robust and waterproof high-speed network connection, via a RayNet network cable.
