Typical systems

The following illustrations show the various products that can be connected in a typical system.

Typical system examplesSystem diagram

These systems are shown as an example only, and may differ from your planned installation. For information on available cables and accessories, refer to: Spares and accessories

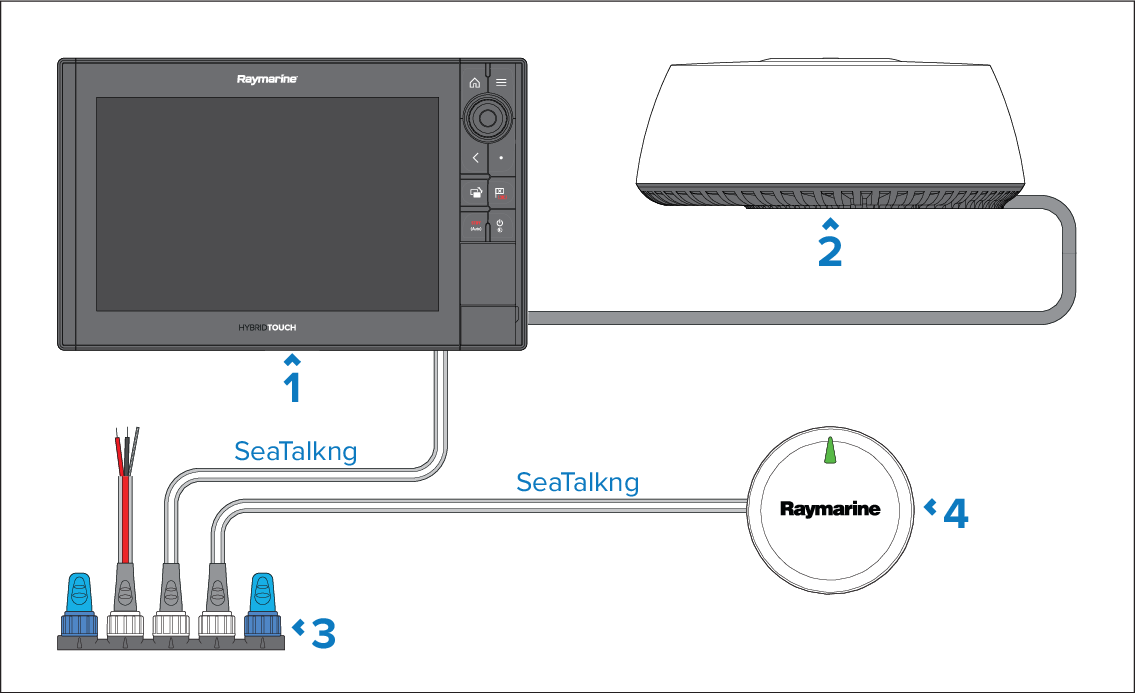

Figure 1. Example: basic Radar system (wired data connection)

Note

Power connections are not shown in the above illustration. The MFD, Quantum, and SeaTalkng® bus each require their own dedicated power supplies. For more information, refer to the Installation instructions for each respective product.

  1. Multifunction display (MFD) / chartplotter.

  2. Quantum™ 2 Doppler Radome.

  3. SeaTalkng® bus (e.g. 5-way conector or backbone).

  4. Evolution EV-1 / EV-2 (required for Doppler and MARPA features).

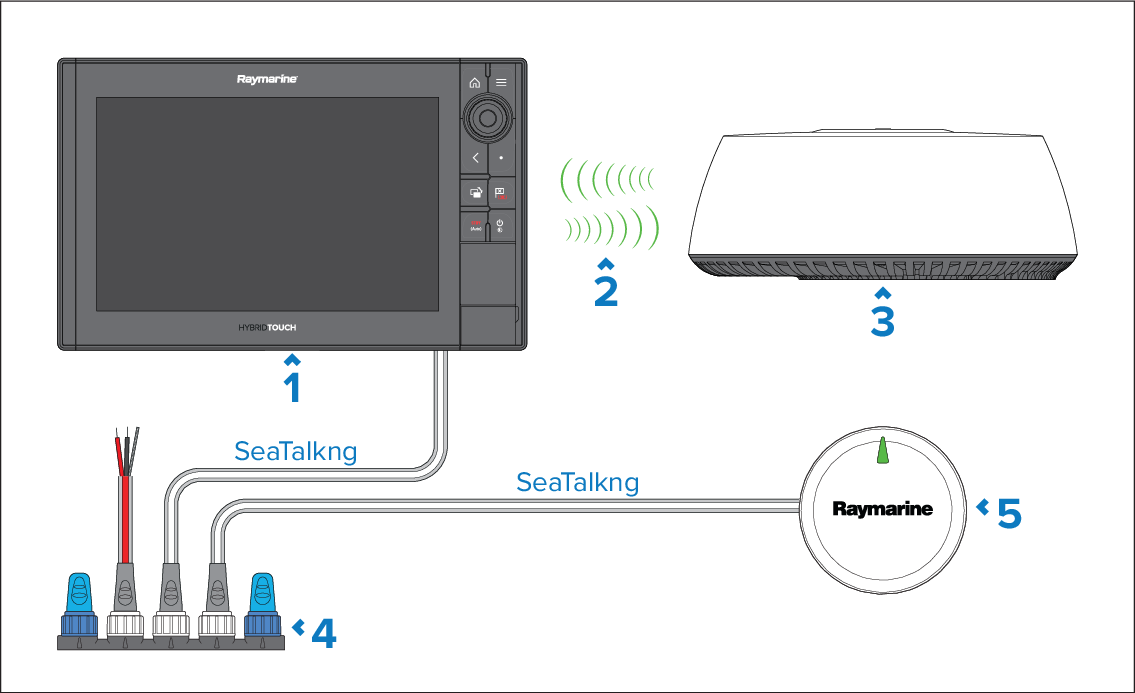

Figure 2. Example: basic Radar system (wireless data connection)

Note

Power connections are not shown in the above illustration. The MFD, Quantum, and SeaTalkng® bus each require their own dedicated power supplies. For more information, refer to the Installation instructions for each respective product.

  1. Multifunction display.

  2. Wi-Fi data link between Quantum and MFD.

  3. Quantum™ 2 Doppler Radome.

  4. SeaTalkng® bus (e.g. 5-way connector or backbone).

  5. Evolution EV-1 / EV-2 (required for Doppler and MARPA features).
