Product overview

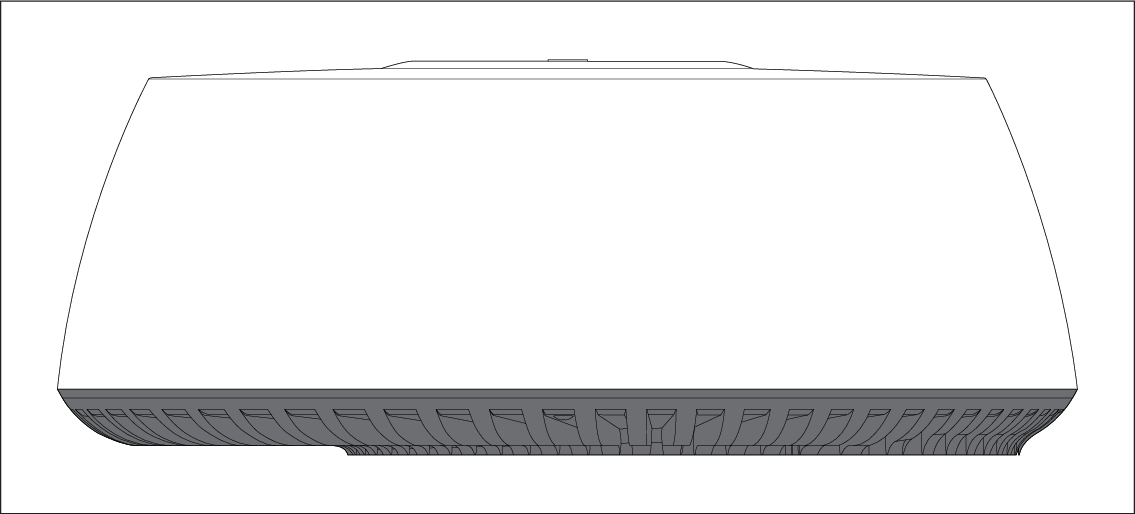

The Quantum™ 2 Doppler Radome is a compact, solid-state Radar scanner, utilizing MARPA technology for target tracking, CHIRP pulse compression for improved range resolution, Doppler technology to make it easier to track moving objects, and Wi-Fi connectivity for easier installation. In conjunction with a compatible multifunction display, the Quantum™ 2 Doppler scanner provides a map-like representation of the area around your vessel, enabling you to identify other vessels, buoys, and land features such as coastlines and hills.

Product overview

The Quantum™ 2 Doppler Radome has the following features:

  • Solid-state technology (no magnetron) for improved efficiency, and rapid start-up.

  • Range performance up to 24 nm (dependent on installation location).

  • Doppler display, making it easier to track approaching and receding objects.

  • MARPA for target tracking (up to 25 targets) and collision avoidance.

  • CHIRP pulse compression for improved target range resolution, and reduced background noise.

  • Wireless data connection via Wi-Fi, or wired connection via RayNet cable.

  • Radar image display and control via Raymarine multifunction display.

  • 24 RPM scanner rotation.

  • Low power consumption.

  • 12 V or 24 V operation.

  • Waterproof to IPx6.
