Power connection
PowerConnection
Note
A Y-adapter cable (part number A80308) is available for existing installations that already use a combined power / data cable from a Digital or HD Color Radome. The Y-adapter splits the existing combined cable into the separate data and power connectors used by the scanner.

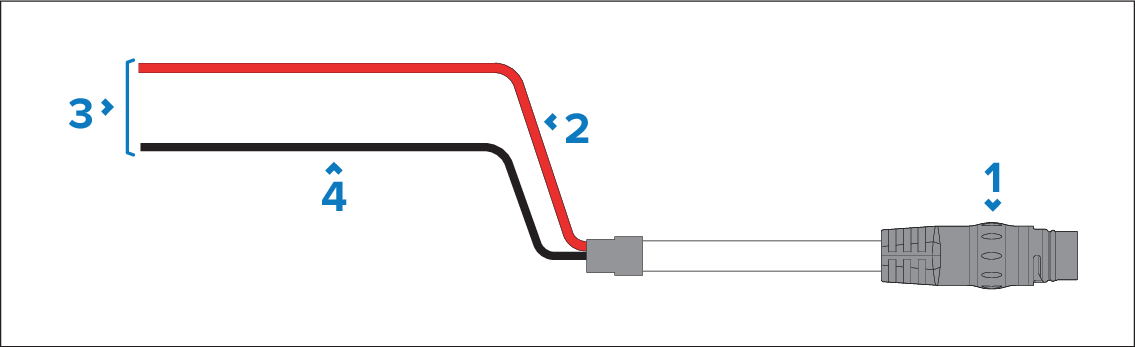

Description |
|
|---|---|
1 |
Power cable, connects to the product’s power connector. |
2 |
Red wire (positive), connects to the power supply’s positive terminal. |
3 |
Connection to 12 V / 24 V power supply. |
4 |
Black wire (negative), connects to the power supply’s negative terminal. |
