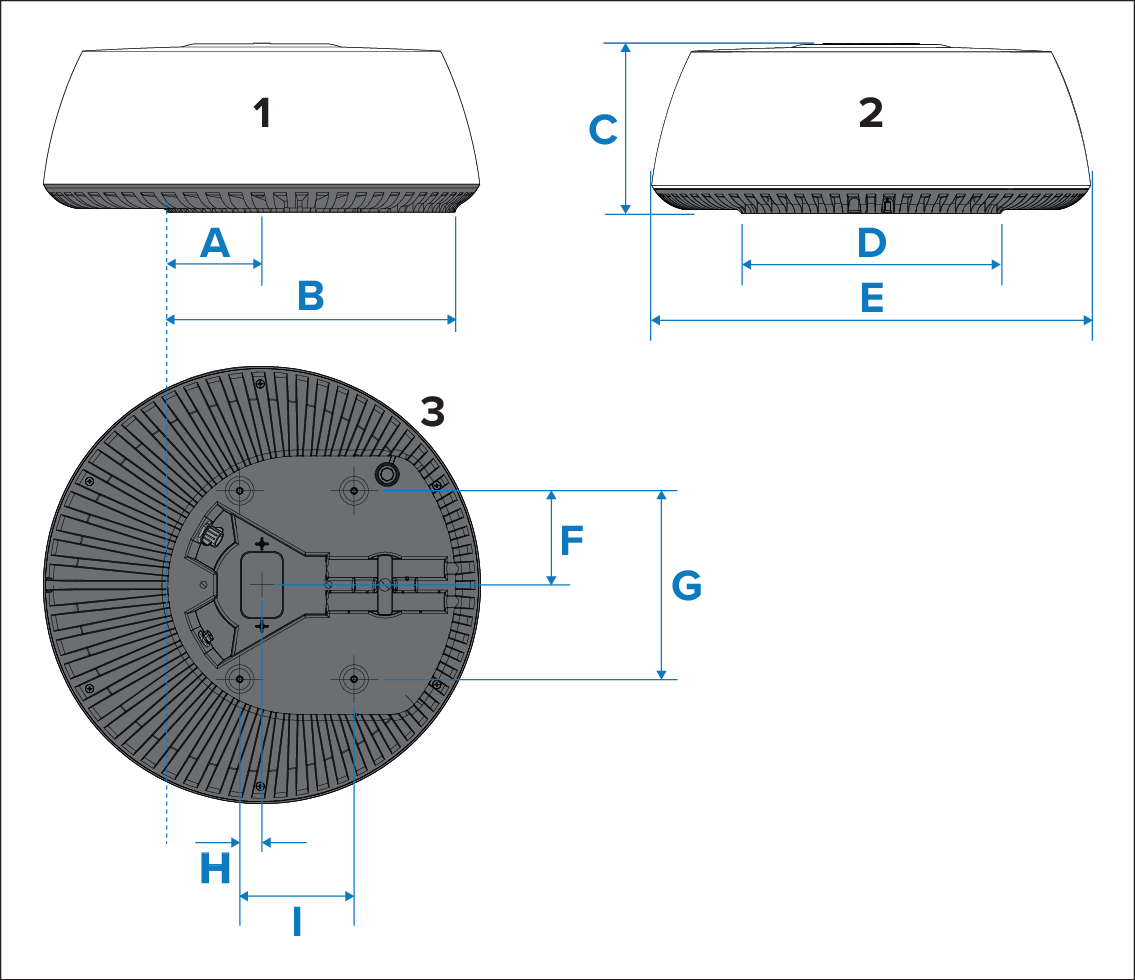

Product dimensions

A = 116.0 mm (4.57 in.)

Distance from centerline of scanner to front of mounting base.

B = 355.0 mm (13.98 in.)

Distance from rear of mounting base to front of mounting base.

C = 209.5 mm (8.25 in.)

Height of Radar scanner.

D = 319.5 mm (12.58 in.)

Mounting base width (rear of unit).

E = 541.0 mm (21.30 in.)

Width of Radar scanner.

F =116.5 mm (4.59 in.)

Distance from centerline to rear mounting hole.

G = 233.0 mm (9.17 in.)

Distance between mounting holes.

H =27.5 mm (1.08 in.)

Distance from centerline to front mounting hole.

I = 141.5 mm (5.57 in.)

Distance between front and rear mounting holes.
