Silent mode switch connection

In Silent mode your AIS700 will stop transmitting position data and operate as a receiver only. Silent mode can be enabled using a connected MFD and by connecting a switch to the relevant wires on the Power/data cable. Please refer to your MFD’s operation instructions for details on enabling silent mode.

Note

A silent mode switch will override an MFD’s Silent mode setting.

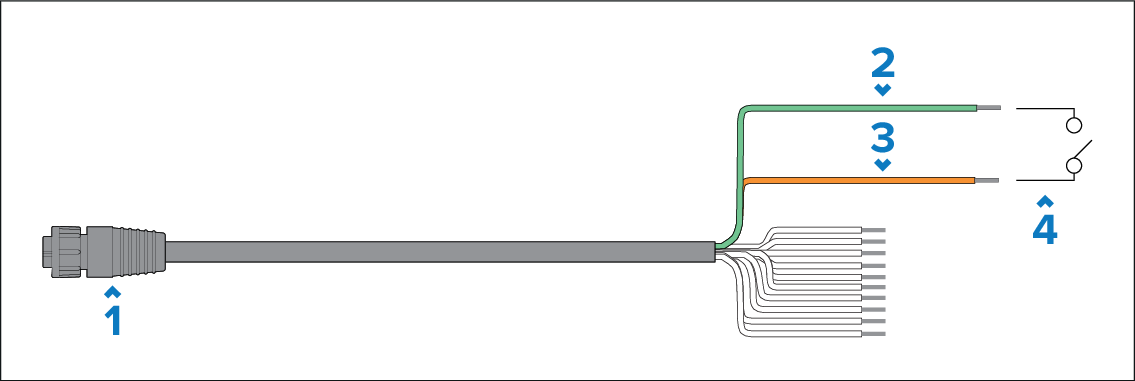

ConnectionSilent mode switch

  1. Power/data cable (supplied)

  2. Light Green wire

  3. Orange wire

  4. Switch (not supplied)

Crimp or solder the wire connections and ensure suitable insulation from water ingress.
