Power connection

Connection PowerPower supply

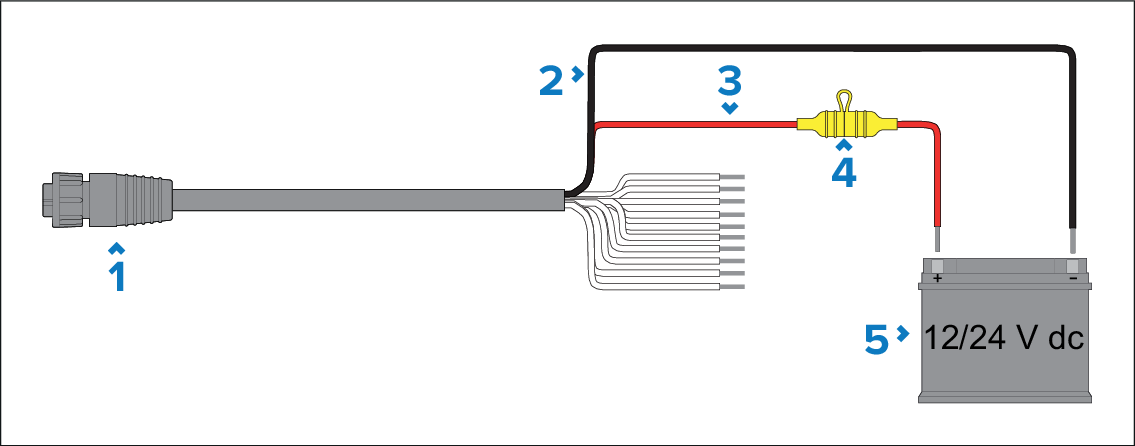

  1. Power/data cable (supplied)

  2. Black wire (negative) — connects to the power supply’s negative terminal.

  3. Red wire (positive) — connects to the power supply’s positive terminal.

  4. Waterproof fuse holder containing a suitably-rated inline fuse (not supplied), which must be fitted to the red positive wire — refer to the fuse ratings below.

  5. Power source (12 / 24 V dc).
