Parts supplied

The following parts are supplied with your product.

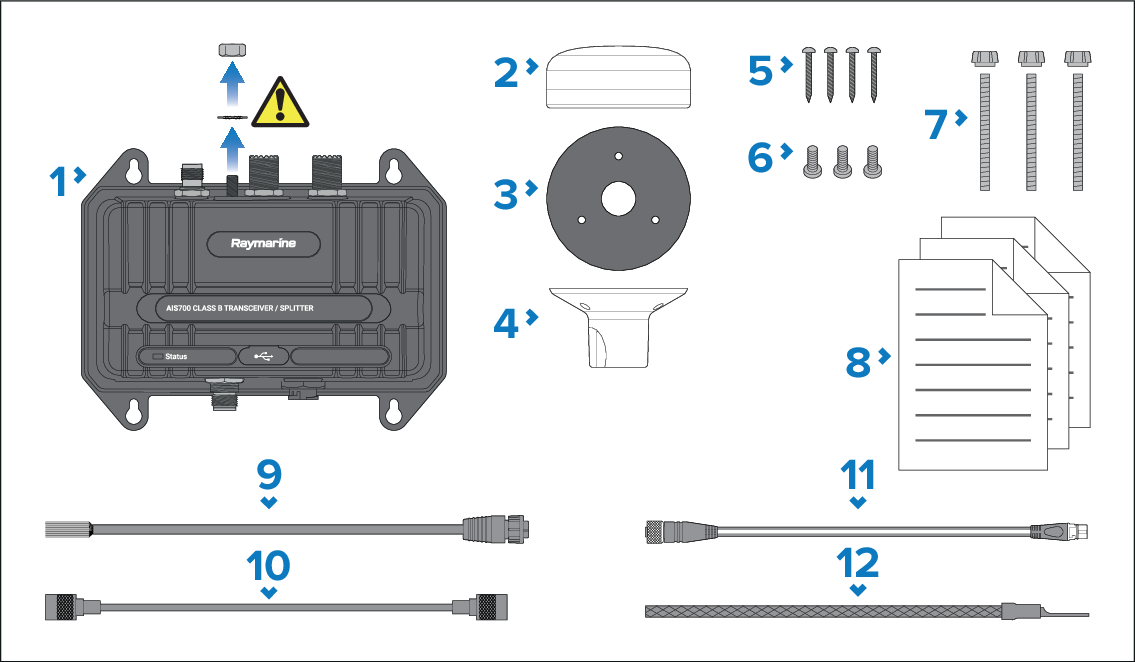

Box contents Parts supplied

  1. AIS700 unit. For an explanation of the warning symbol shown, refer to the Important Note below.

  2. GNSS antenna, with captive cable, 10 m (33 ft).

  3. GNSS antenna gasket.

  4. GNSS antenna pole mount.

  5. AIS unit fixings (4x No.8x19 self-tapping screws).

  6. Screws for (optional) pole-mounting of the GNSS antenna.

  7. Fixings for (optional) surface mounting of the GNSS antenna (3x M3x40 stud and thumb nut).

  8. Product documentation.

  9. Power/data cable, 2 m (6.56 ft).

  10. VHF Radio cable, 1 m (3.28 ft).

  11. DeviceNet to SeaTalkng adaptor cable, 1 m (3.28 ft).

  12. Grounding strap.

Important

The AIS unit is supplied with a nut and washer pre-fitted to the unit’s grounding lug. This dedicated grounding point must be connected via the supplied grounding strap to your vessel battery’s 0V negative battery terminal. For more information, refer to the label attached to the unit’s grounding lug, as well as the following section: Grounding
