NMEA 2000 / SeaTalkng connection

Your product can transmit data to devices connected on SeaTalkng® or NMEA 2000 CAN bus networks. Connection is established using the DeviceNet connector located on the bottom of the unit.

ConnectionsSeaTalkngNMEA 2000DeviceNet

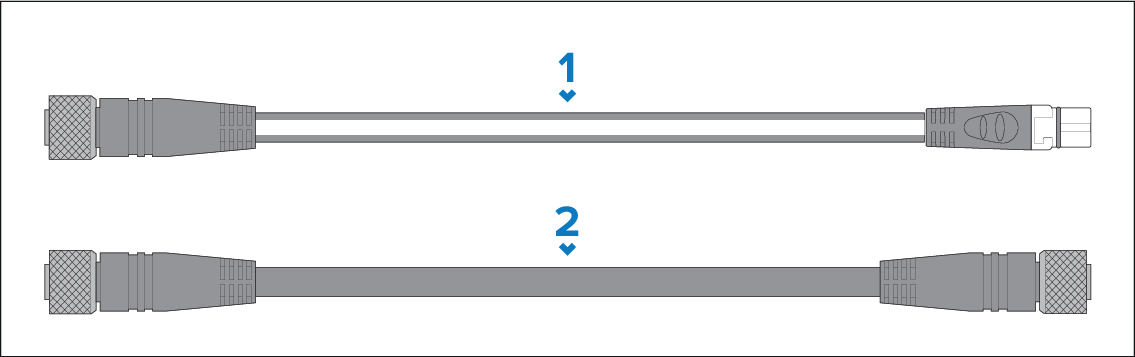

  1. Use the supplied DeviceNet to SeaTalkng® adaptor cable to connect your product to an available spur connection on a SeaTalkng® backbone.

  2. Alternatively you can connect your product to a NMEA 2000 backbone using a standard DeviceNet cable (not supplied).

Note

  1. The product must be connected to a correctly terminated backbone. You cannot connect your product directly to a MFD.

  2. Refer to the instructions supplied with your SeaTalkng® / NMEA 2000 device for details on creating a backbone.
