Mounting the unit

Before mounting the unit, ensure that you have:

  • Selected a suitable location (a clear, flat surface is required).

  • Identified the relevant cable connections and the route that the cable will take.

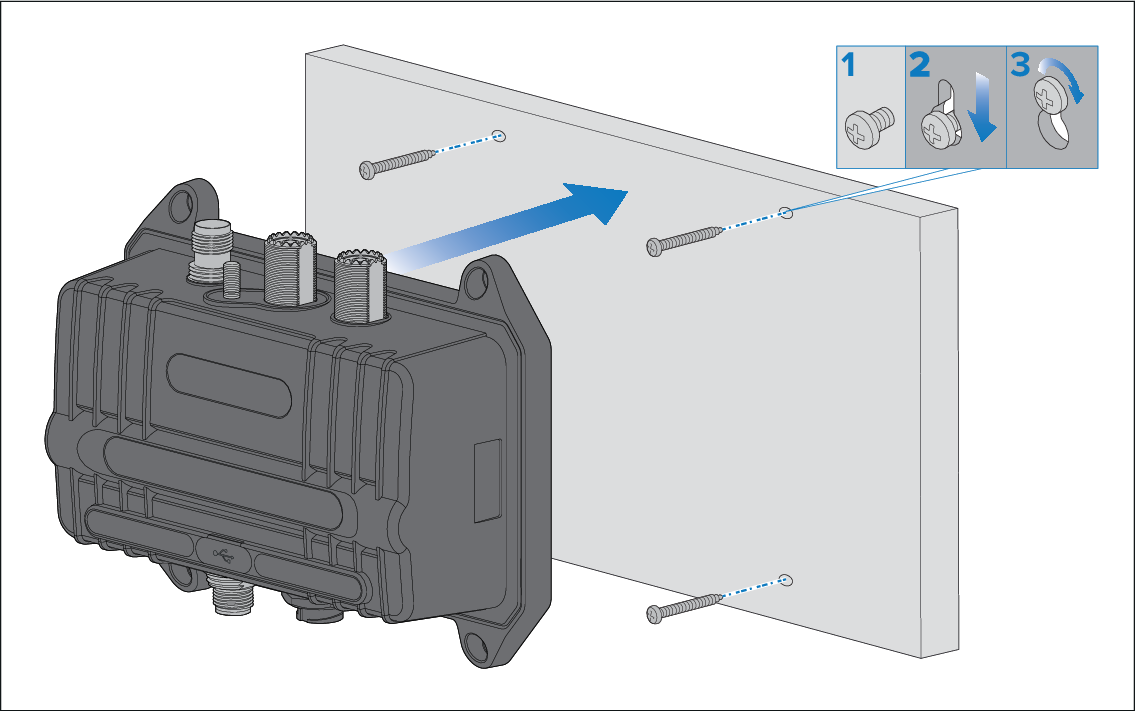

  1. Using the unit as a guide, mark the location of the mounting holes on the mounting surface.
  2. Drill holes for the mounting fixings using a drill with a suitable sized drill bit.
  3. Screw the fixings approximately half way into the holes in the mounting surface.
  4. Place the unit over the fixing screws and push down to lock into position.
  5. Fully tighten the screws.
  6. Connect the necessary cables.
