GPS (GNSS) antenna connection

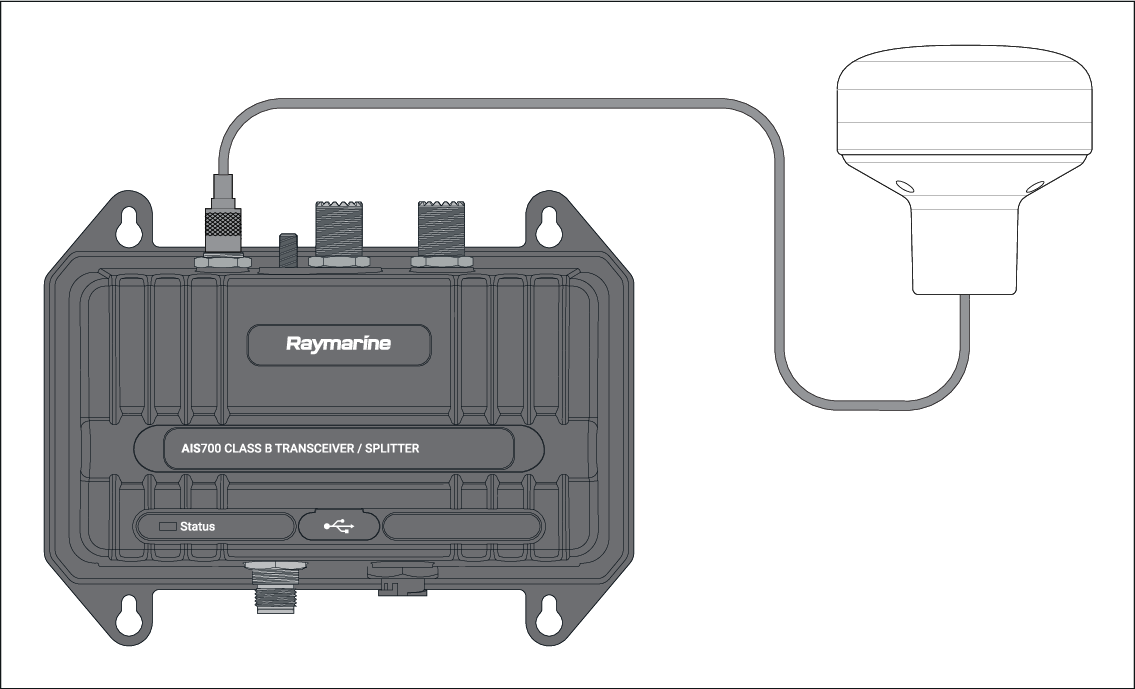

Connect the supplied GNSS antenna to your AIS700 using the GNSS antenna connection. The antenna is fitted with a 10 m (33ft) cable for connecting to the AIS700.

ConnectionGNSS antennaGPS antenna

Note

Do NOT connect any other antenna than the one supplied with your AIS700.

If the antenna is not connected or connected incorrectly, your AIS700 will operate in Silent mode. In this mode, the AIS700 will not transmit but will still receive.

Important

If you are replacing a GPS antenna supplied with an older AIS receiver or an AIS700 with an early (low) serial number, please be aware that the mounting diameter (cutout) of the GPS receiver has changed, from Ø44 mm to Ø60 mm.
