Radar scanner mounting surface

Suitable Radar scanner mounting surfaces include a mast platform, an arch, or a bridge structure.

If mounting the Radar scanner on a sailboat, it may be necessary to install a Radar guard to prevent the sails or any rigging coming into contact with the Radar scanner or mounting platform. Without a proper Radar guard the mounting platform and the Radar scanner could be severely damaged.

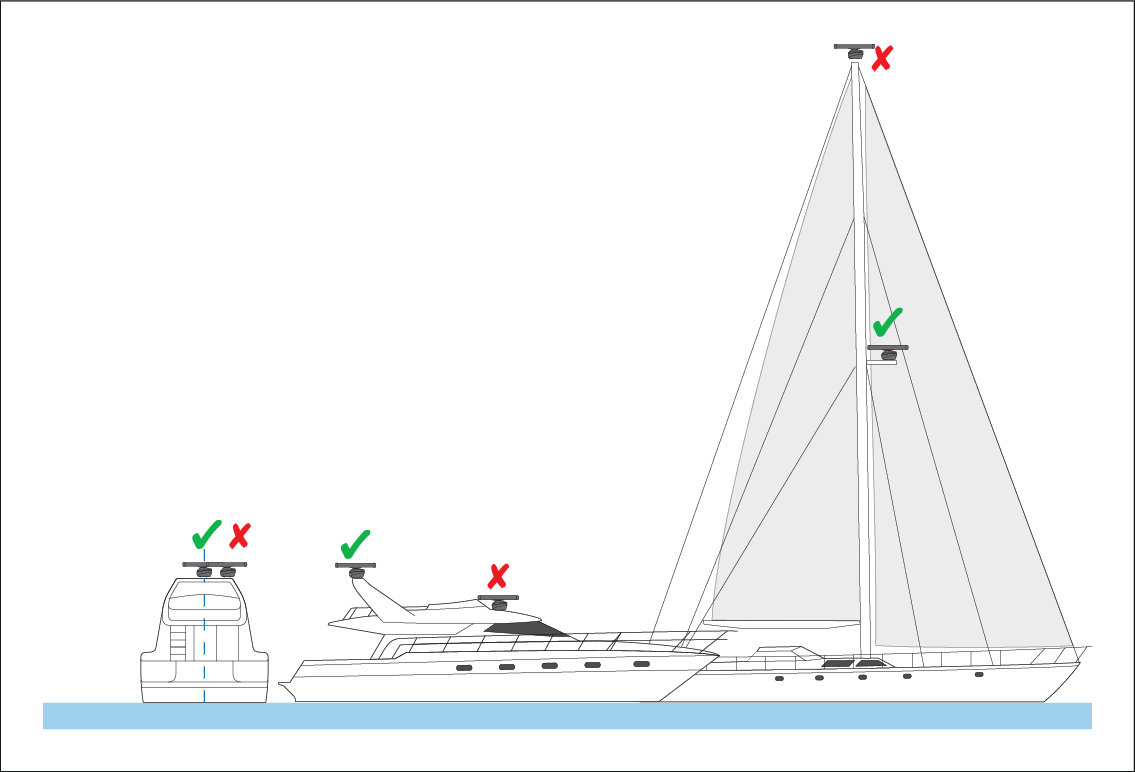

The following diagram illustrates suitable mounting surfaces for the Radar scanner:
