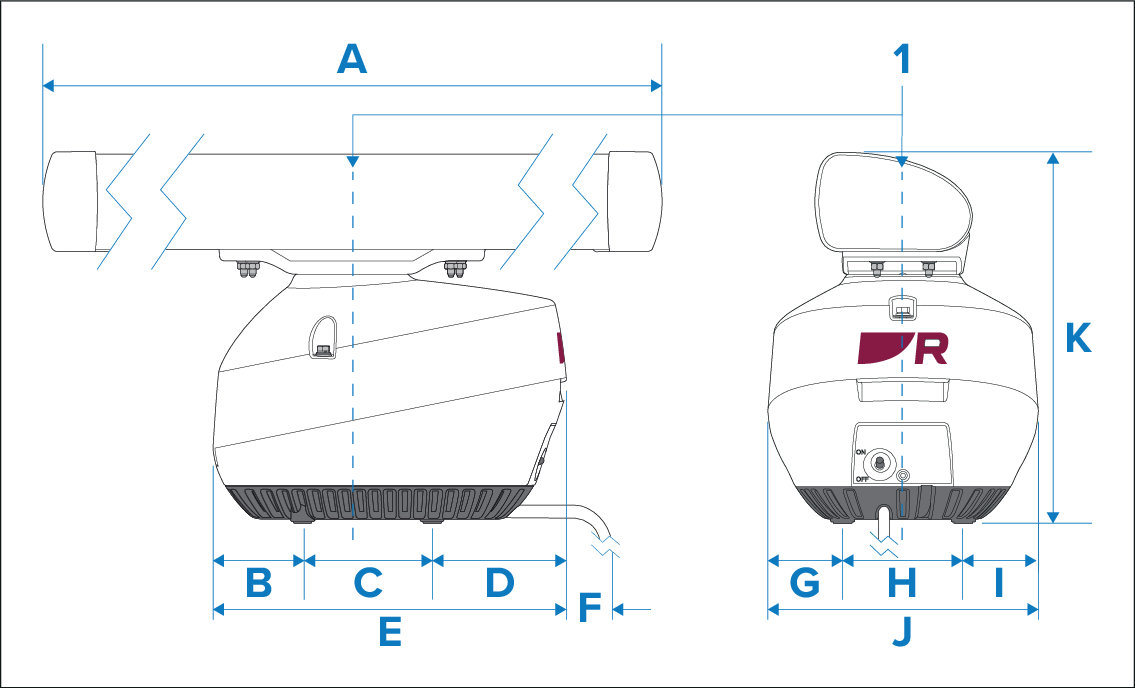

Product dimensions

1

Center of rotation.

A

Maximum rotation:

• 48” – 1306 mm (51.4 in)

• 72” – 1918 mm (75.7 in)

B

104 mm (4.1 in)

C

150 mm (5.9 in)

D

155 mm (6.1 in)

E

409 mm (16.1 in)

F

59 mm (2.3 in) minimum

G

87 mm (3.4 in)

H

140 mm (5.5 in)

I

87 mm (3.4 in)

J

314 mm (12.3 in)

K

430 mm (16.9 in)
