Product overview

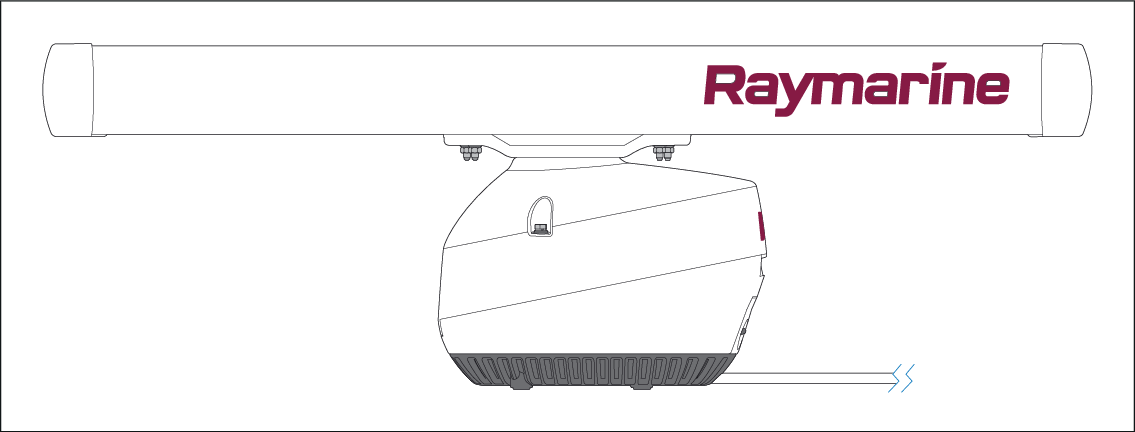

The Magnum Open Array Radar is a magnetron Radar which utilizes narrow beamwidths and high power output to detect and resolve low reflectivity targets at ranges up to 96 nm. In conjunction with a compatible multifunction display / chartplotter, the Magnum scanner provides a map-like representation of an extended area around your vessel, enabling you to identify birds, weather, other vessels, and land features such as coastlines and hills.

Product overview

The Magnum Open Array Radar includes the following features:

• Range performance up to 96 nm (12kW variant; dependent on installation location).

• Narrow horizontal beam widths for enhanced target separation.

• “Bird mode” for bird detection up to 12 nm.

• Weather detection.

• Radar image display and control via Raymarine multifunction display.

• Real-time heading display (requires position-data source in system).

• Relative-motion “true trails” (requires position-data source in system).

• Automatic MARPA for target tracking and collision avoidance.

• 48 RPM scanner rotation.

• Data connection via RayNet (Ethernet) cable.

• 12 V or 24 V operation (with supplied VCM100 power converter).

• Waterproof to IPx6.
