Product overview

Axiom is a range of touchscreen glass bridge-style multifunction displays / chartplotters.

Axiom features include:

  • Full range of navigation, sonar, radar, data, entertainment and other apps available, via the embedded LightHouse operating system.

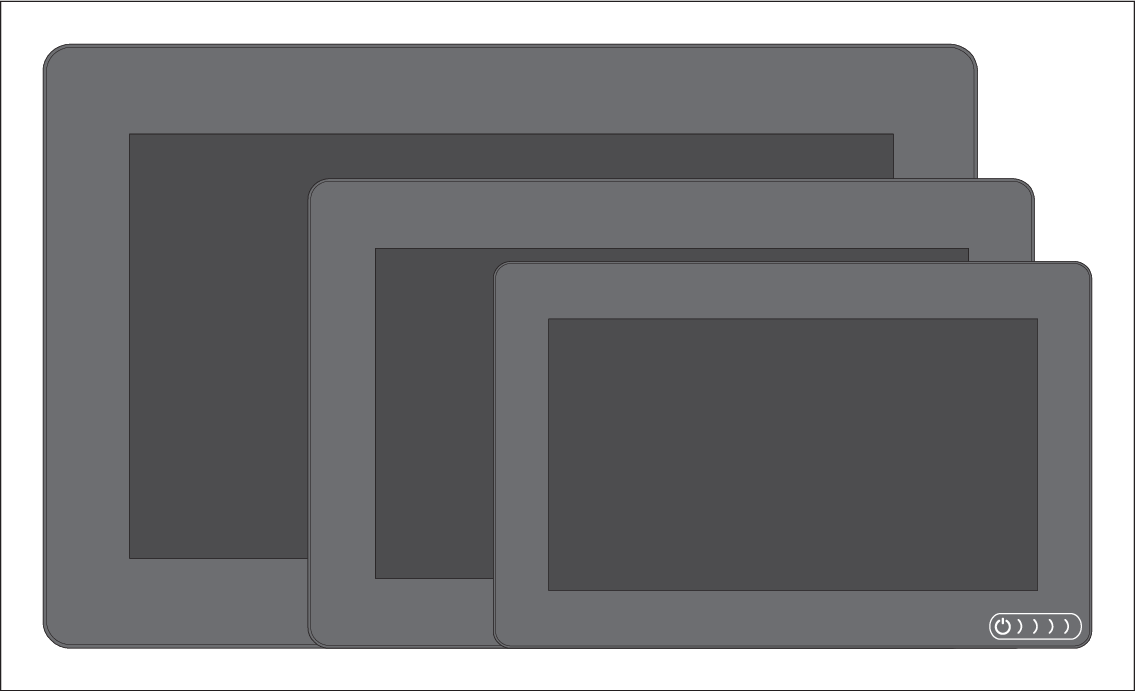

  • Available in 7, 9 and 12 inch screen sizes.

  • Quad-core (4-core) processor.

  • 4 Gbyte internal solid state storage (2 Gbyte usable for user data).

  • Multi-point touchscreen display, which supports the following screen resolutions:

    • Axiom 7: 800 x 480 (WVGA)

    • Axiom 9: 800 x 480 (WVGA)

    • Axiom 12: 1280 x 800 (WXGA)

  • Wide viewing angles.

  • DV display variants include an internal DownVision sonar module and a 600W CHIRP sonar module, which can be connected to compatible transducers via the 9-pin transducer connector on the rear of the display.

  • RV 3D display variants include an internal RealVision 3D sonar module and a 600W CHIRP sonar module, which can be connected directly to compatible transducers via the 25-pin transducer connector on the rear of the display.

  • RayNet (Ethernet) connection, which supports 10/100 Mbits/s data transfer speeds.

  • NMEA 2000 DeviceNet connection (or SeaTalk NG via the supplied adaptor cable).

  • NMEA 0183 connection available, via an optional NMEA 0183 to NMEA 2000 converter (part number: A80721).

  • MicroSD card reader.

  • Micro-USB connection, for use with an optional Remote Card Reader (RCR) accessory.

  • Waterproof to IPx6 and IPx7 (suitable for above or below decks installation).
