Parts supplied — Axiom 9 and Axiom 12

The parts listed are supplied with the following product numbers: E70366, E70367, E70368 and E70369.

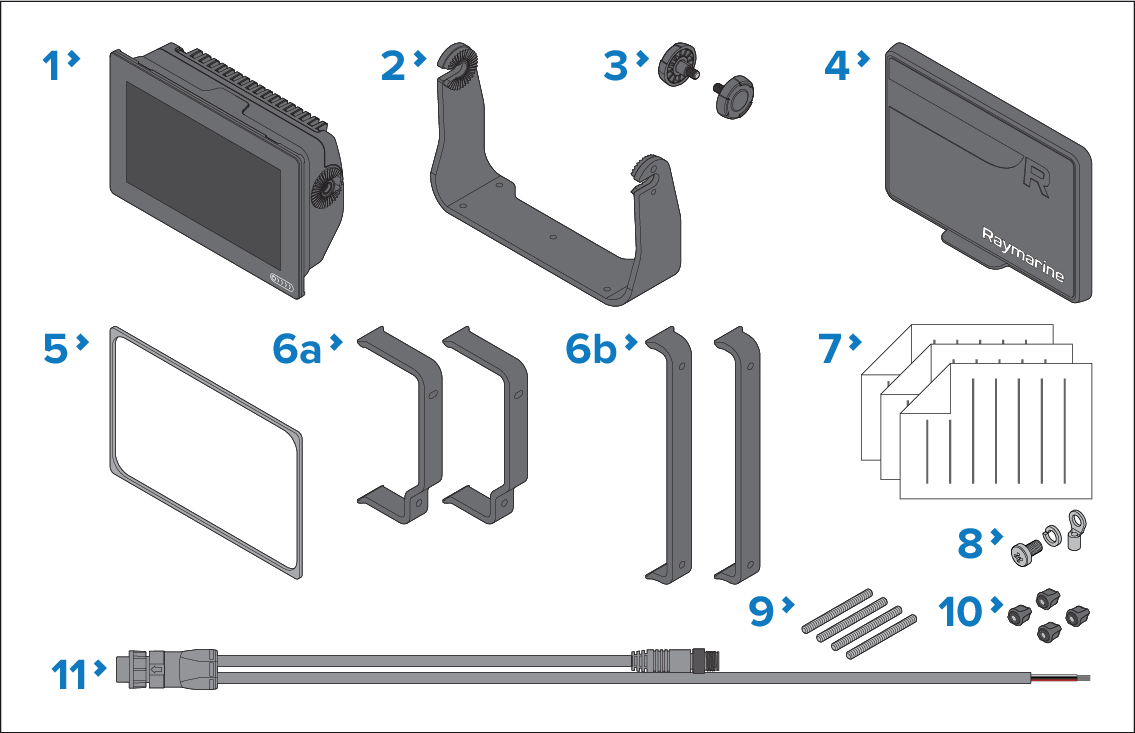

Parts supplied7 97 12

Unpack your product carefully to prevent damage or loss of parts. Check the box contents against the list below. Retain the packaging and documentation for future reference.

  1. MFD

  2. (1) Trunnion mounting bracket

  3. Trunnion knobs x 2

  4. Suncover

  5. Panel mount gasket for surface / flush mounting

  6. Rear mounting brackets:

    1. supplied with 9” MFD

    2. supplied with 12” MFD

  7. Documentation pack

  8. M3x5 screw, M3 spring washer and M3 crimp terminal (for optional grounding point connection)

  9. M5x58 Threaded studs x 4

  10. M5 Thumb nuts x 4

  11. Power / NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)

E70367–02 is also supplied with a DownVision CPT-100DVS transducer and associated fittings.

E70367–03 is also supplied with a RealVision 3D RV-100 transducer and associated fittings.

E70369–03 is also supplied with a RealVision 3D RV-100 transducer and associated fittings.

Note

(1) Fixings to secure the trunnion bracket to a mounting surface are not provided. 5 x self-tapping screws are required. The screws should be suitable for the mounting surface material and the 5.75 mm (0.23 in) diameter mounting holes in the trunnion bracket.
