Applicable products
This document is applicable to the following products:

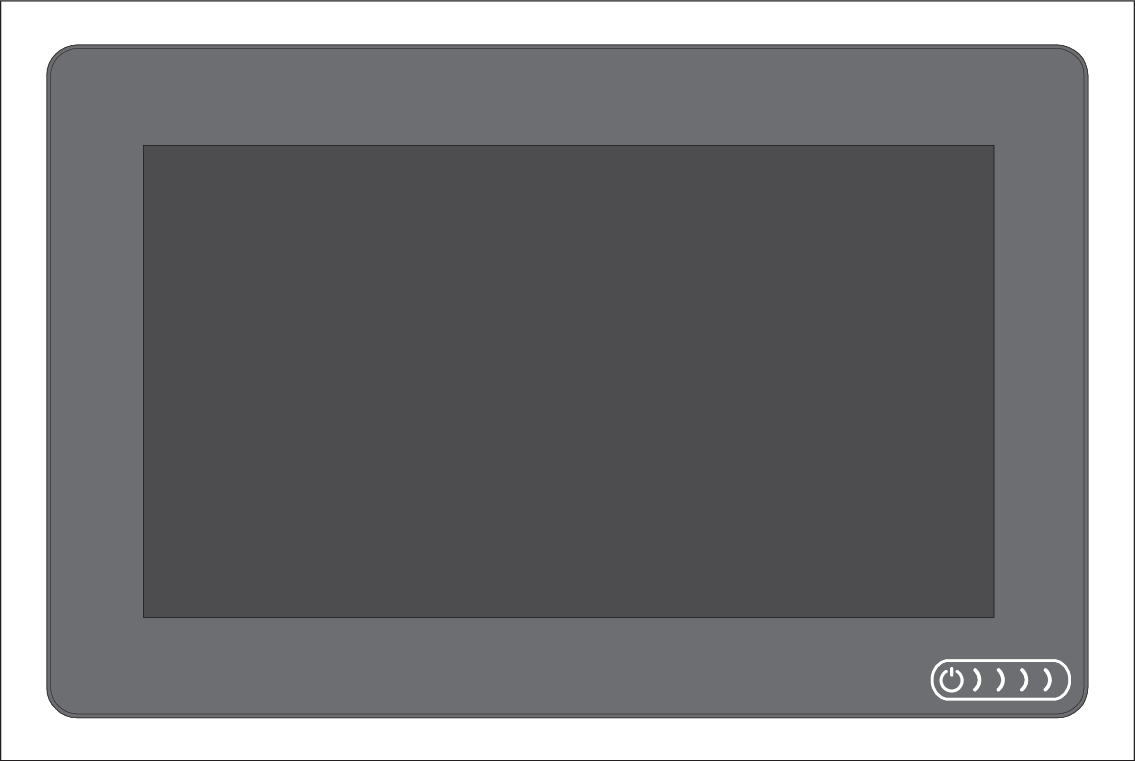

Axiom 7"
Part |
Name |
Description |
|---|---|---|
E70363 |
Axiom 7" |
7” Chartplotter. |
E70363-DISP |
Axiom 7" |
7” Chartplotter (supplied with rear mounting kit only). |
E70364 |
Axiom 7" DV |
7” Chartplotter with built-in DownVision sonar module. |
E70364-01 |
Axiom 7" DV plus CPT-S Transom |
7” Chartplotter with built-in DownVision sonar module (supplied with a CPT-S Transom mount transducer). |
E70364-02 |
Axiom 7" DV plus CPT-100DVS |
7” Chartplotter with built-in DownVision sonar module (supplied with a CPT-100DVS DownVision® transducer). |
E70364-DISP |
Axiom 7" DV |
7” Chartplotter with built-in DownVision sonar module (supplied with rear mounting kit only). |
E70365 |
Axiom 7" RV 3D |
7” Chartplotter with built-in RealVision 3D sonar module. |
E70365-03 |
Axiom 7" RV 3D plus RV-100 |
7” Chartplotter with built-in RealVision 3D sonar module (supplied with a RV-100 transom transducer). |
E70365-DISP |
Axiom 7" RV 3D |
7” Chartplotter with built-in RealVision 3D sonar module (supplied with rear mounting kit only) |
Axiom 9"
Part |
Name |
Description |
|---|---|---|
E70366 |
Axiom 9" |
9” Chartplotter. |
E70366-DISP |
Axiom 9" |
9” Chartplotter (supplied with rear mounting kit only). |
E70367 |
Axiom 9" RV 3D |
9” Chartplotter with built-in RealVision 3D sonar module. |
E70367-02 |
Axiom 9" RV 3D plus CPT-100DVS |
9” Chartplotter with built-in RealVision 3D sonar module (supplied with a CPT-100DVS DownVision® transducer). |
E70367-03 |
Axiom 9" RV 3D plus RV-100 |
9” Chartplotter with built-in RealVision 3D sonar module (supplied with an RV-100 transducer). |
E70367-DISP |
Axiom 9" RV 3D |
9” Chartplotter with built-in RealVision 3D sonar module (supplied with rear mounting kit only). |
Axiom 12"
Part |
Name |
Description |
|---|---|---|
E70368 |
Axiom 12" |
12” Chartplotter |
E70368-DISP |
Axiom 12" |
12” Chartplotter (supplied with rear mounting kit only) |
E70369 |
Axiom 12" RV 3D |
12” Chartplotter with built-in RealVision 3D sonar module. |
E70369-03 |
Axiom 12" RV 3D plus RV-100 |
12” Chartplotter with built-in RealVision 3D sonar module (supplied with a RV-100 transducer). |
E70369-DISP |
Axiom 12" RV 3D |
12” chartplotter with built-in RealVision 3D sonar module (supplied with rear mounting kit only). |
