Spares

The following spares are available for your product:

Note

For pilot controller and drive interface unit spares and accessories, refer to the Installation Instruction documentation specific to those products.

Part

Description

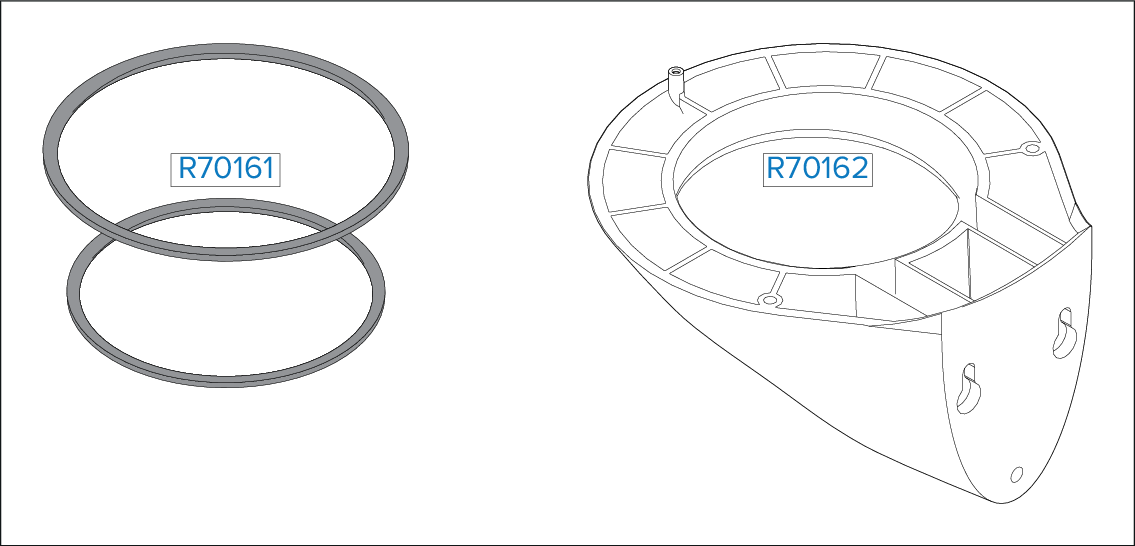

R70161

EV-1 / EV-2 Sealing ring pack.

R70162

EV-1 / EV-2 Wall bracket.

Evolution-Series cable kits

Part

Description

R70160

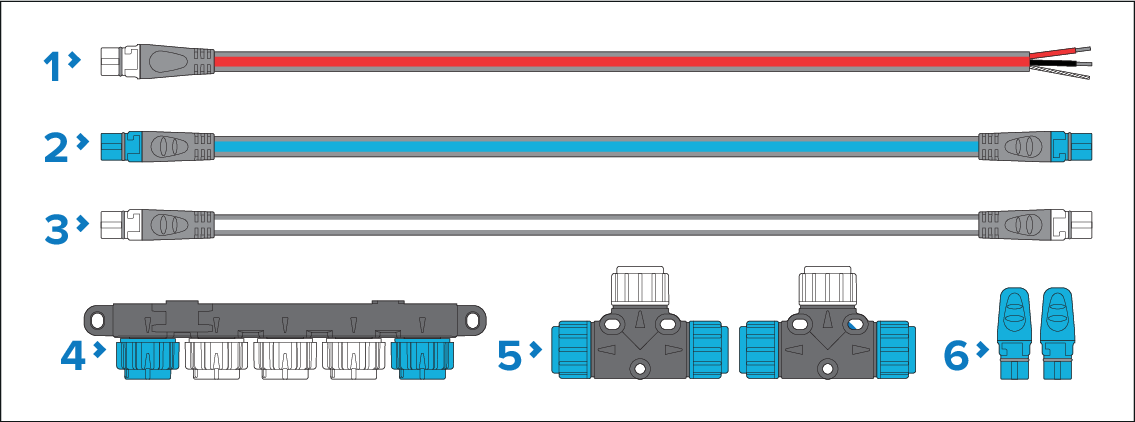

Evolution-Series SeaTalk NG cable kit, consisting of:

  1. 1x SeaTalk NG power cable 0.4 m (1.3 ft).

  2. 1x SeaTalk NG backbone cable 5 m (16.4 ft).

  3. 1x SeaTalk NG spur cable 0.4 m (1.3 ft).

  4. 1x SeaTalk NG 5-way connector block.

  5. 2x SeaTalk NG T-piece connector.

  6. 2x SeaTalk NG terminator.

Part

Description

R70192

EV-2 DeviceNet cable kit, consisting of:

  1. 2x DeviceNet adaptor cable (female).

  2. 1x SeaTalk NG power cable.

  3. 2x SeaTalk NG terminator.
