ECI-100 unit connection

The ECI-100 can be used to connect the EV-2 to a compatible Drive-by-Wire (DBW) steering system.

ConnectionNetwork connectionsECI-100 connection

Please refer to the ECI product pages on the Raymarine website for the latest steering system and engine compatibility information: www.raymarine.com/multifunction-displays/accessories/engine-interfacing/eci-100

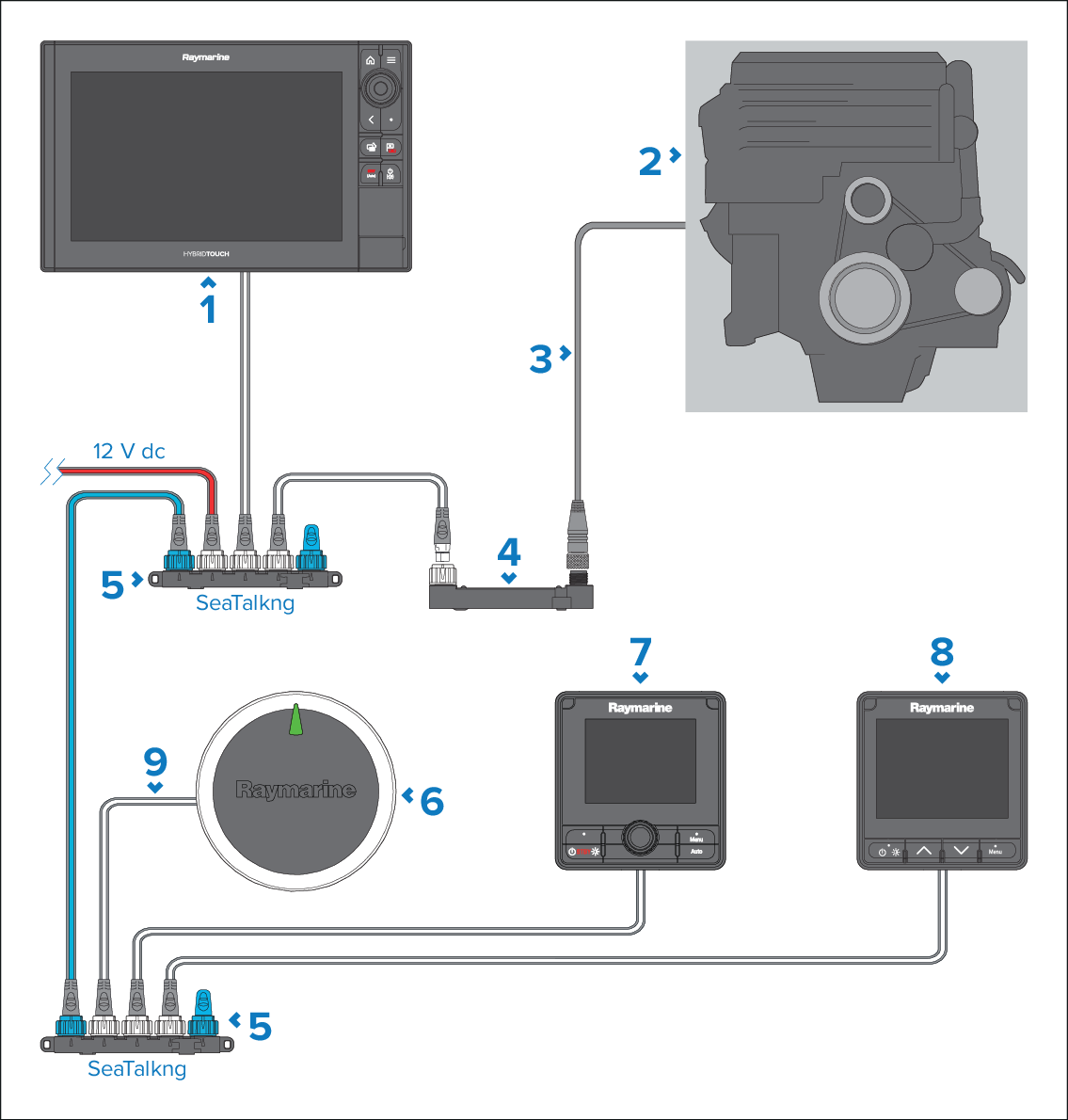

1. Multifunction display / chartplotter.

2. Vessel engine / steering system.

3. Engine-specific adapter cable.

4. ECI-100.

5. SeaTalk NG 5-way block.

6. EV-2.

7. SeaTalk NG pilot controller.

8. SeaTalk NG instrument display.

9. SeaTalk NG spur cable (connecting EV-SeriesEV-2 to the SeaTalk NG backbone).
