Orca integration

The Orca app by Orca Technologies AS can transfer routes to aRaymarine Axiom-Series and Axiom 2-Series chartplotters.

OrcaIntegrationPrerequisites:

• Chartplotters must be running LightHouse v4.9.330 or later.

• v2025.13.1 or later of the Orca app is required.

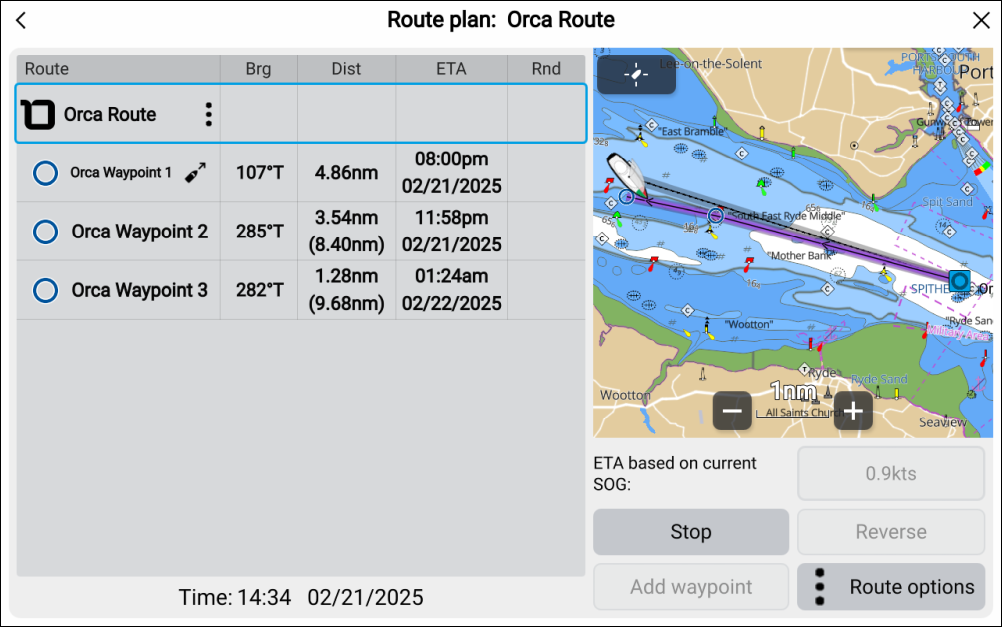

A route saved to the Orca app can be sent to the chartplotter and displayed in the chart app. Only one route can be transferred at a time. If a subsequent route or an update to an existing route is sent, it will overwrite the route on the chartplotter. Orca routes are easily identified in the chartplotter chart app with a unique Orca route symbol.

The Orca route can be followed from the MFD / chartplotter in the same way as a route that was created on the chartplotter.

With the exception of the Route color, an Orca route cannot be edited or changed from the MFD / chartplotter.

Orca routes can be hidden and deleted from the chartplotter.

If a new or updated route is transferred from the Orca app, it is automatically displayed in the MFD / chartplotter’s chart app.
