Parts supplied

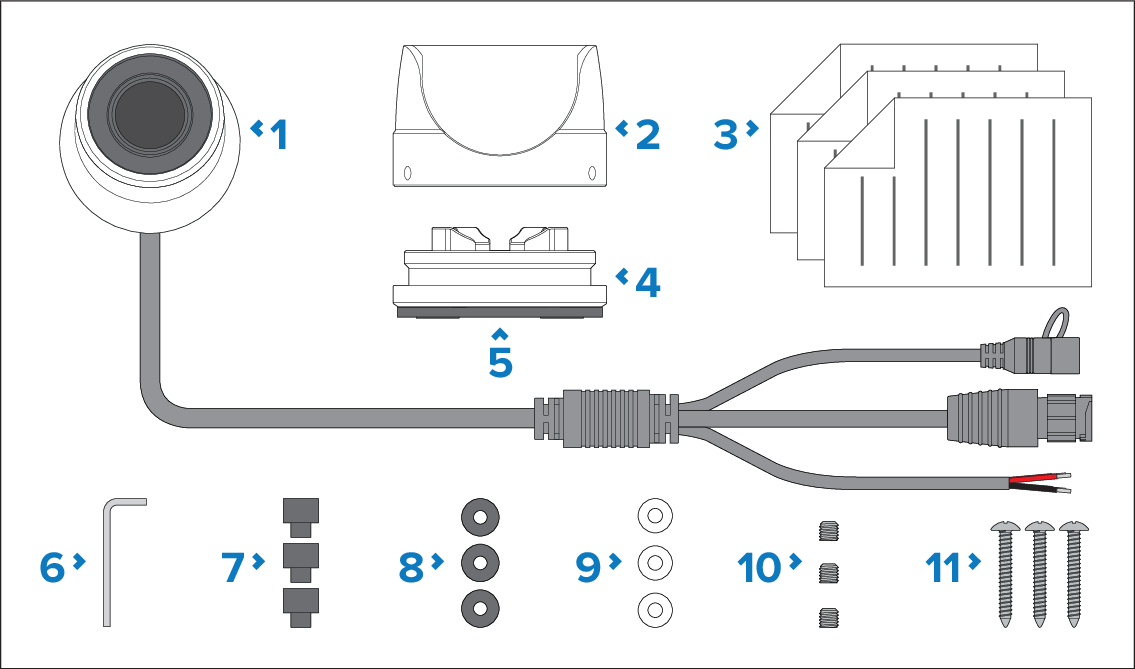

List of parts supplied with the E70716 or E70717 CAM400 cameras.
Unpack your product carefully to prevent damage or loss of parts. Check the box contents against the list below. Retain the packaging and documentation for future reference.
Description |
|
|---|---|
1 |
Camera ball — includes a fitted 1.47 m (4.82 ft) cable. The cable includes a RayNet (male) connector, a factory reset switch, and 12 V dc power wires. |
2 |
Camera collar. |
3 |
Documentation pack. |
4 |
Camera base. |
5 |
Mounting gasket (pre-fitted to the camera base). |
6 |
2 mm Hex wrench (Allen key). |
7 |
3x rubber plugs. |
8 |
3x silicone washers. |
9 |
3x white plastic washers. |
10 |
3x grub screws. |
11 |
3x M4 x 30 mm self-tapping mounting screws. |
