Camera orientation

The camera supports both ball-up(upright) and ball-down (upside down) mounting orientations.

To maintain video feed orientation the ambient light sensor should be at the 12 o’clock position for both orientations.InstallationCamera orientation

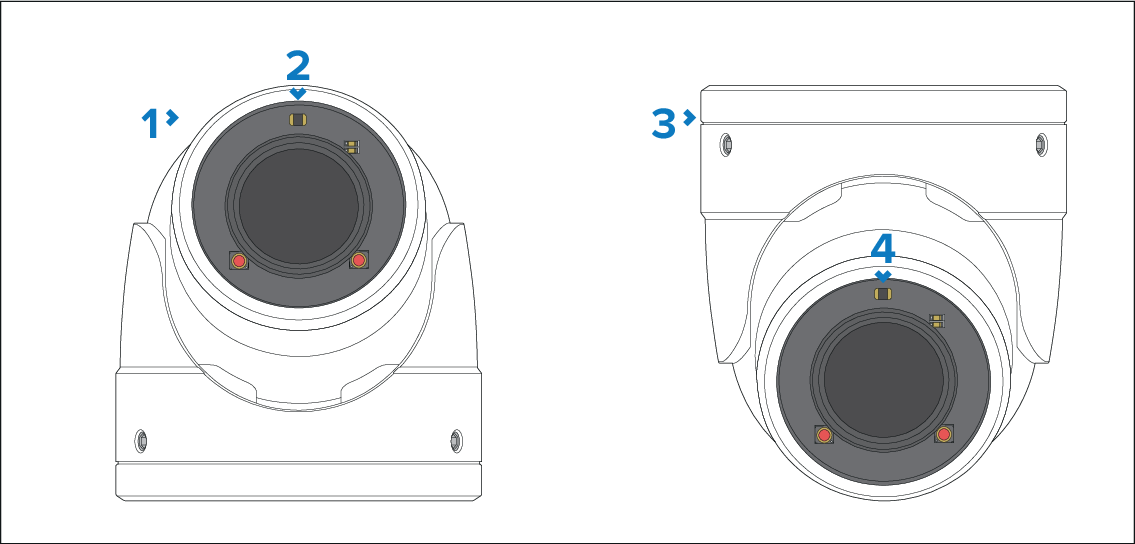

Example: camera mounting orientations

1. Ball-up: the camera is mounted on top of the mounting surface.

2. Ambient light sensor position for Ball-up installations.

3. Ball-down: the camera is suspended upside down below the mounting surface.

4. Ambient light sensor position for Ball-down installations.
