System example

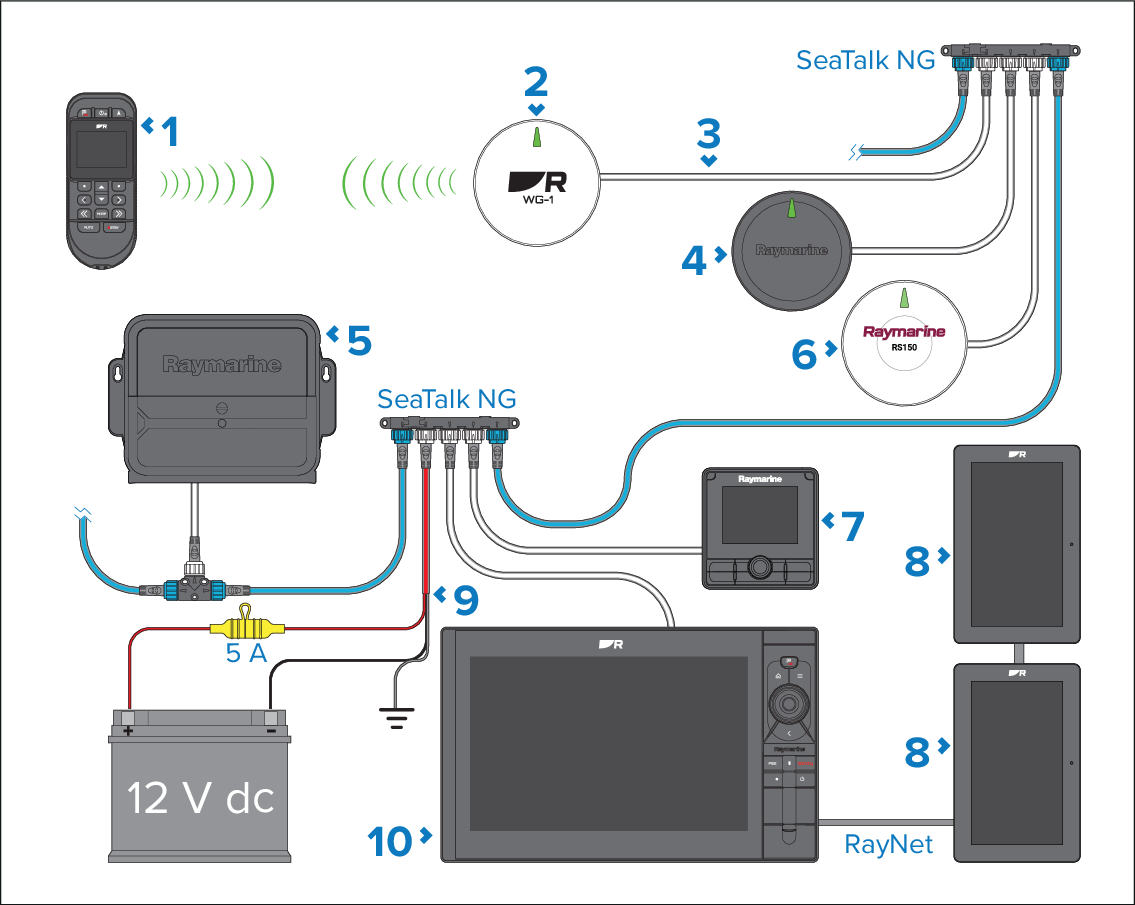

The following system example shows an RCU-1 Autopilot Remote Control connected to an autopilot system via the WG-1 Wireless Gateway.

System example

  1. RCU-1 Remote Autopilot Controller.

  2. WG-1 Wireless Gateway.

  3. DeviceNet to SeaTalk NG adapter cable.

  4. Evolution-Series sensor (e.g.: EV-1).

  5. Evolution-Series ACU (e.g.: ACU-200).

  6. RS150 GNSS (GPS) receiver.

  7. p70Rs autopilot control head.

  8. Alpha-Series displays.

  9. SeaTalk NG power connection (12 V dc only).

  10. Axiom 2 Pro chartplotter.
