Product overview

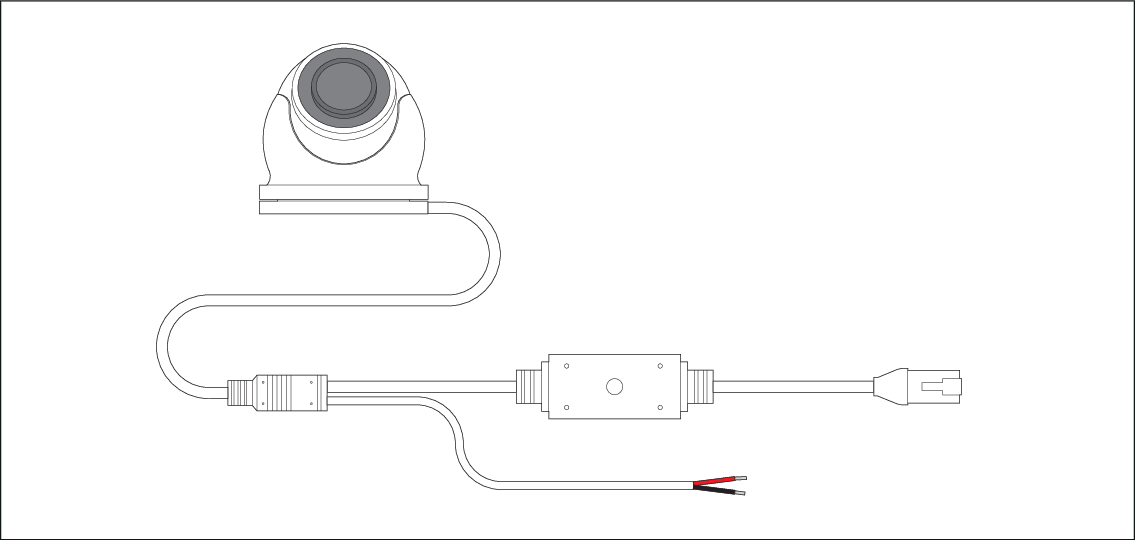

The CAM300 is an infrared illuminated (I2) eyeball digital IP camera with both day and night vision. In conjunction with a compatible multifunction display, the camera provides a high-definition image which can be viewed or recorded for later playback.

Product overview

Note

  • A single CAM300 video feed can be displayed on a maximum of 3 compatible Raymarine® multifunction displays at the same time (via each display’s Video app).

  • The video streams of up to 4 CAM300 cameras can be displayed simultaneously on a single compatible Raymarine® multifunction display.

The camera has the following features:

  • 3 megapixel 1/4” CMOS image sensor.

  • 1.8 mm wide-angle Field of View (FoV), 125° Horizontal x 70° Vertical.

  • 10 m (33 ft.) I2 (infrared) beam emitter distance.

  • Multi-streaming of H.264 and H.265 video.

  • Support for image resolutions up to 2304 x 1296 (3 megapixel max).

  • Image flip function, for ball-up (upright), or ball-down (upside-down) installation.

  • Image invert function, for reverse video applications (e.g. camera pointing in the opposite direction to the vessel).

  • ONVIF (Profile S) support, for compatibility with a wide range of security systems and applications.

  • Mechanical IR cutout filter for true day / night operation.

  • Supports augmented reality features, via the optional AR200 sensor and a compatible Raymarine® multifunction display.

  • Waterproof to IPx6.

  • 12 V dc power.

  • Class 1 PoE device for easy single cable installation for both power and data signals.
