Dedicated power connection

The unit can be powered from a 12 V dc power supply using its dedicated power cable.

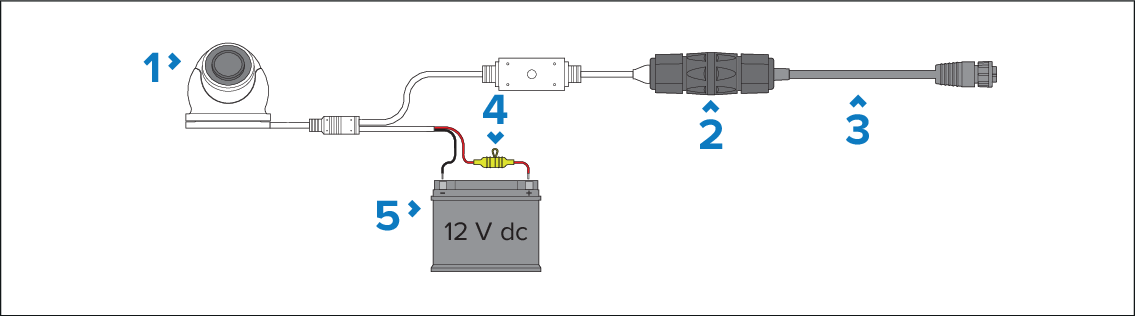

ConnectionsPowerNon-PoE connection

  1. CAM300.

  2. RJ45 to RJ45 waterproof coupler (4115028 — not supplied).

  3. RJ45 (male) to RayNet (female) adapter cable (A62360 — not supplied). DO NOT CONNECT to a PSE (Power sourcing Equipment) if the camera is being supplied power via the dedicated power cable.

  4. A waterproof fuse holder containing a suitably-rated in-line fuse must be fitted (not supplied) — see below for fuse ratings.

  5. 12 V dc power supply providing power to the camera.
