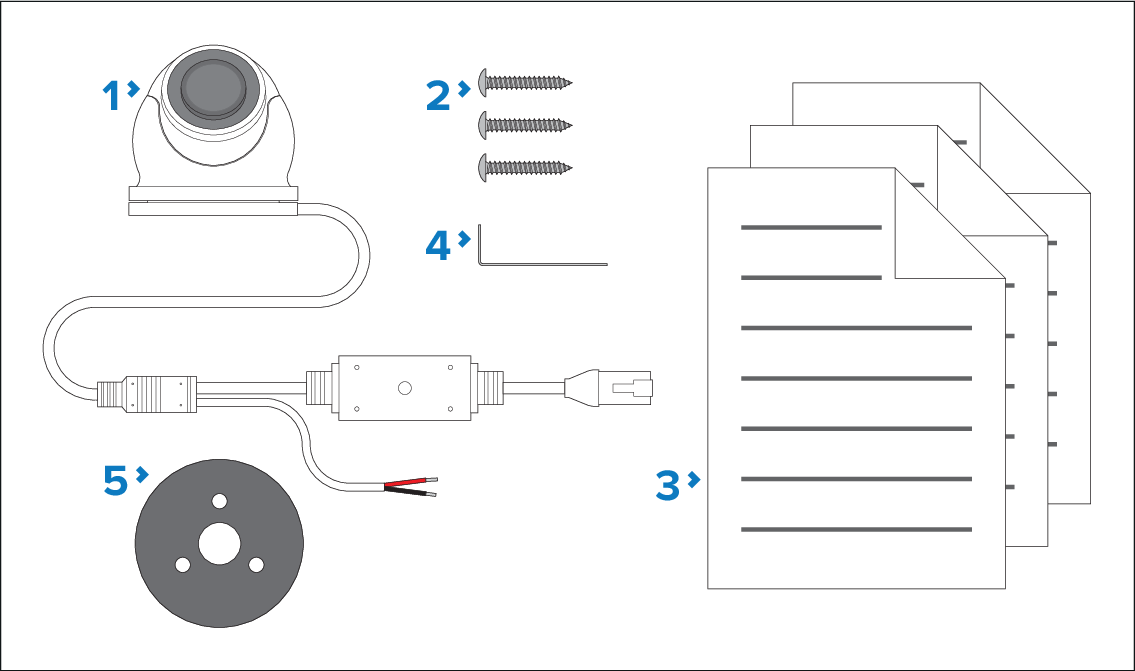

Parts supplied
List of parts supplied in the product box.
Parts supplied
| Item | Description |
|---|---|
1 |
CAM300 — includes an approximate 670 mm (2.2 ft) fitted cable, featuring an RJ45 (male) and power connector. |
2 |
Mounting screws (x3) — self-tapping 3.5 mm x 32 mm A4. |
3 |
Documentation. |
4 |
Hex wrench (Allen key), M3. |
5 |
Waterproof gasket. |
Note
A RayNet to RJ45 adapter cable is also required when connecting the camera to a compatible Raymarine® multifunction display or network switch. For further information, refer to the following section: Spares and accessories
