Camera orientation

The camera can be mounted in 2 different orientations, referred to as “ball-up” (upright) and “ball-down” (upside down).

InstallationCamera orientation

When mounting your camera, ensure that the green infrared sensor is centered at the top (as illustrated below).

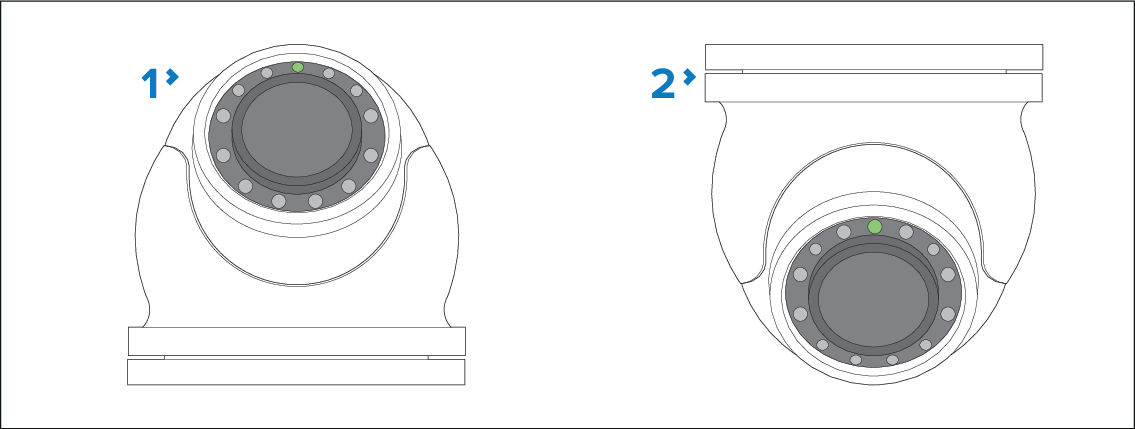

Example: camera mounting orientations

1. Ball-up: the camera is mounted on top of the mounting surface, and the green infrared sensor is centered away from the attached metallic collar.

2. Ball-down: the camera is suspended upside down below the mounting surface, and the green infrared sensor is centered toward the attached metallic collar.
