Augmented Reality (optional)

The CAM300 can be optionally used with a Raymarine® LightHouse™ 4 multifunction display running version 4.1 (or above) and a AR200 to enable ClearCruise™ Augmented Reality features. Below is a system example which shows the components and connections required to enable ClearCruise™ Augmented Reality on your system.

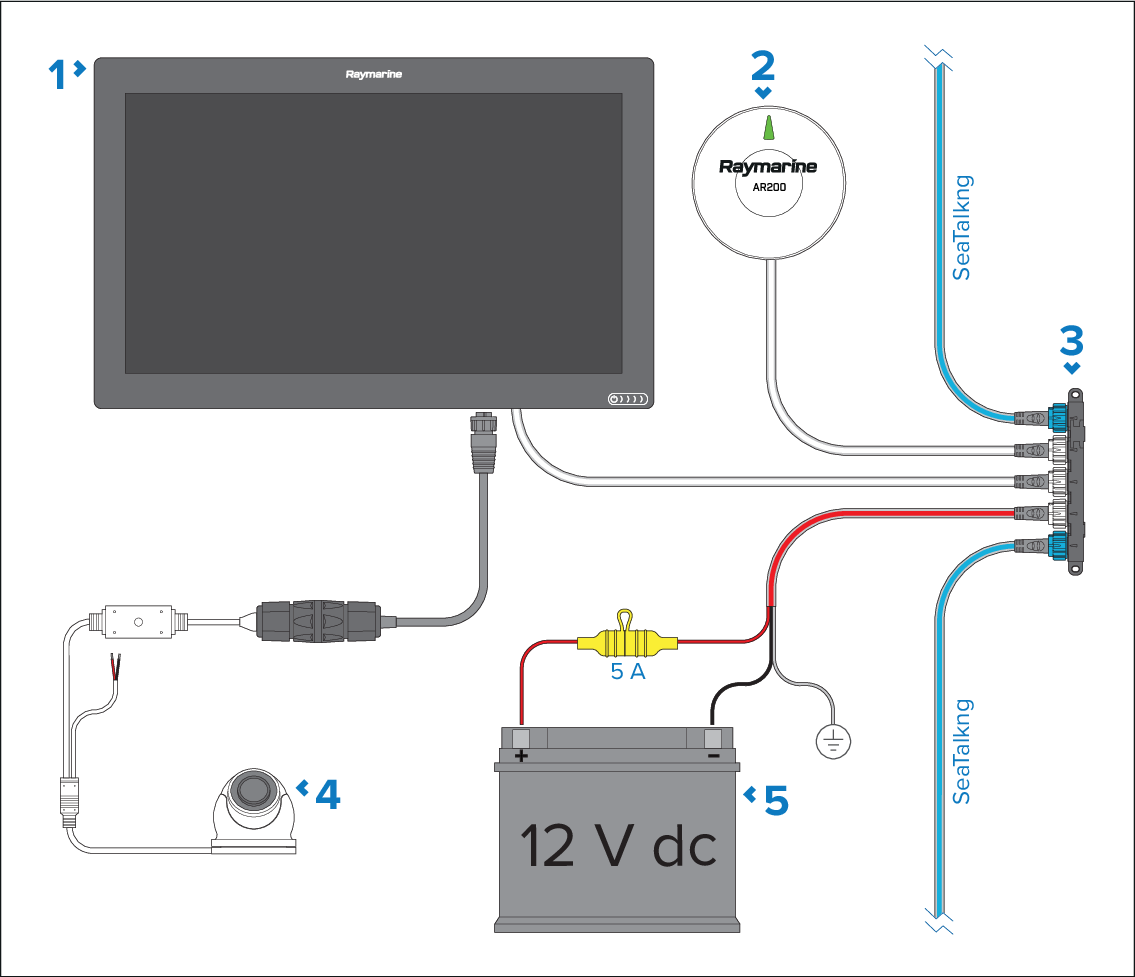

System exampleAugmented Reality (AR)Augmented Reality (AR)

  1. PSE (Power Sourcing Equipment) providing PoE (Power over ethernet) to the camera (Axiom XL currently illustrated).

  2. AR200 (E70537 — not supplied).

  3. SeaTalkng® backbone.

  4. CAM300 connected to a PSE (Power Sourcing Equipment).

  5. 12 V dc power supply providing power to the SeaTalkng® backbone.

Note

ClearCruise™ Augmented Reality is not available via the CAM300’s Web browser user interface.

For more information on ClearCruise™ Augmented Reality, please refer to the LightHouse™ 4 Advanced Operation Instructions (81406).
